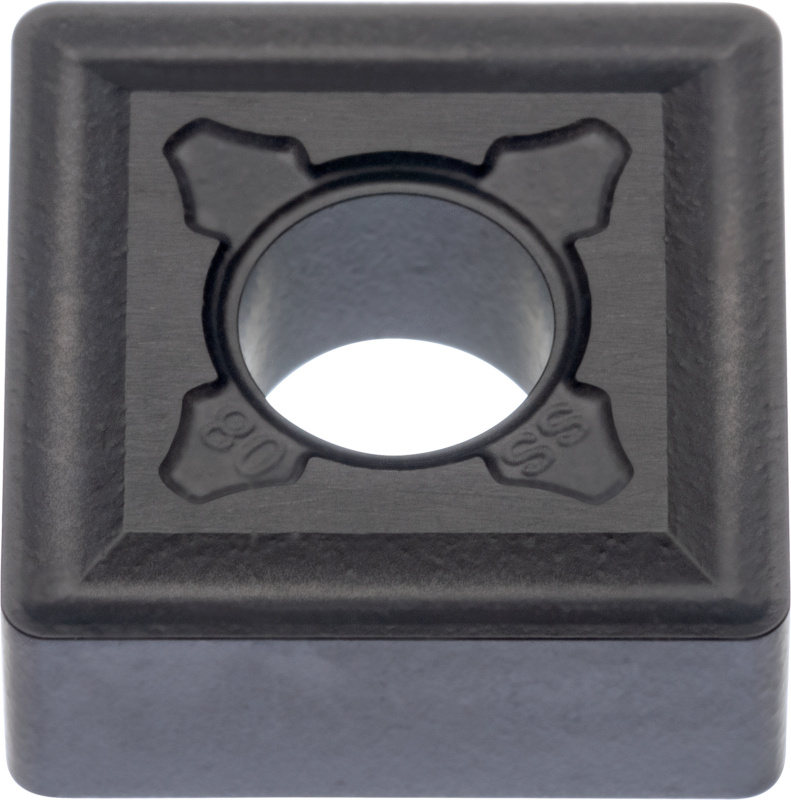

ATORN indexable insert SNMG 120404-FP1 ACP15T-1

ATORN indexable insert SNMG 120404-FP1 ACP15T-1

ATORN indexable insert SNMG 120404-FP1 ACP15T-1
Item no: 1018581 314

Online price:

Available in 6-8 working days.

Advantage
  • very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: SNMG 120404
Material to be processed: Steel | Cast iron
min./max. ap: 0.15-2.50 mm
f min./max.: 0.05-0.25 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,05 mm/r
max. f: 0,25 mm/r
max. ap: 2,50 mm
min. ap: 0,15 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350868

EAN no.: 4066107044848

Product Datasheet Datasheet cutting values
