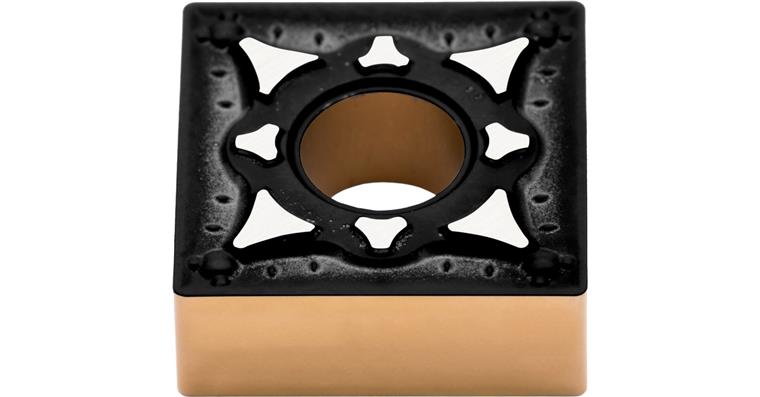

ATORN indexable insert SNMG 120404-MP1 ACP25T-1

ATORN indexable insert SNMG 120404-MP1 ACP25T-1

ATORN indexable insert SNMG 120404-MP1 ACP25T-1
Item no: 1018581 317

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range with moderate cutting conditions

Advantage
  • perfect combination of toughness and wear resistance, for high degree of process stability and broad range of applications
  • positive soft-cutting chip geometry with a wide infeed range and stable cutting edges


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: SNMG 120404
Material to be processed: Steel | Cast iron
min./max. ap: 0.40-5.50 mm
f min./max.: 0.15-0.40 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,15 mm/r
max. f: 0,40 mm/r
max. ap: 5,50 mm
min. ap: 0,40 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 115-270 m/min
Min./max. Vc in cast iron: 115-270 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12350871

EAN no.: 4066107044879

Product Datasheet Datasheet cutting values
