Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M5

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M5

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M5
Item no: 1014319 103

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point
  • Improved wear characteristics thanks to TiN coating
  • Tolerance field 6H
  • DIN 371
  • HSS-E TiN


Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M5
Max. thread depth: 1.5xD
Thread dimension: M5
Pitch: 0,8 mm
Cutting material: HSSE
Surface: TiN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 70 mm
Cutting edge length: 16 mm
Core hole diameter: 4,20 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 5 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN die HSS EN 24230 NPT 3/8 in 18 speed outer diameter 45 mm
  •
    Centre drill bit DIN 333 shape A 60° HSS 2.00 mm
    2,90 €
  • Through hole screw tap M DIN 371 type B 1.5xD HSS-E-TiN for VA steels M3
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M6
    26,05 €
  • Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M8
  •
    Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C M3
    115,58 €
  • Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M10
  •
    Maschinen-Gewindebohrer Enorm 2-Z-X-IKZ-PM-GLT-1 M12-6HX
    166,14 €
  • ATORN screw tap HSSE shape C 40° M2 ISO2 2.5xD CNC UNI for blind hole
    27,03 €
  • ATORN boring bar, positive, with internal cooling A12L SDXCR07
    138,20 €

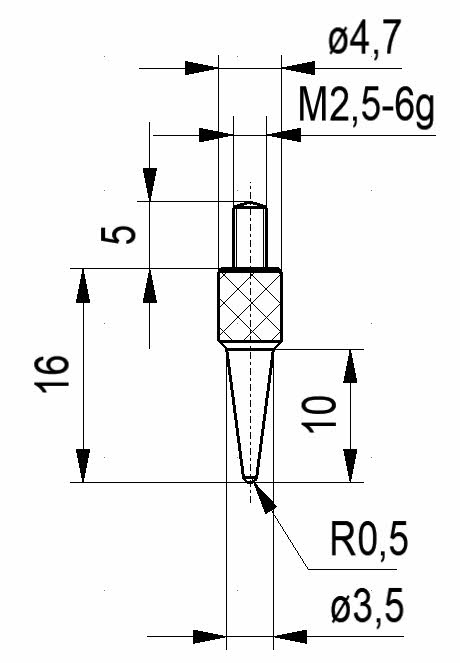

  • Sharp probe no. 2 for dial gauges and precision pointers A thr. M2.5 0.5 radius
