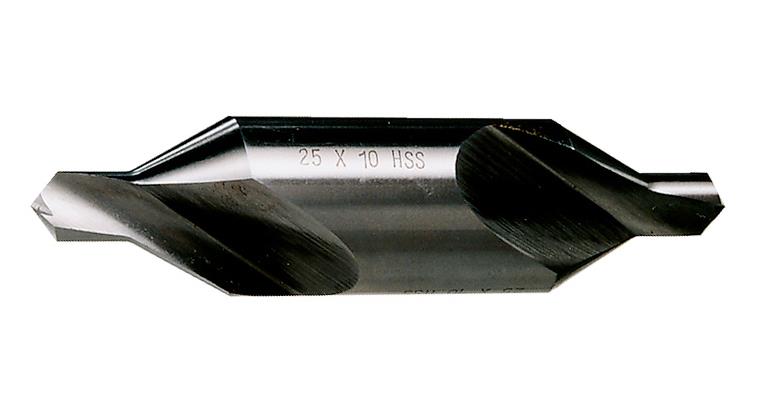

Centre drill bit DIN 333 shape A 60° HSS 2.00 mm

Centre drill bit DIN 333 shape A 60° HSS 2.00 mm

Centre drill bit DIN 333 shape A 60° HSS 2.00 mm
Item no: 1010869 108

Online price:

Available for immediate delivery

Application
For centre drilling on conventional and CNC machines.

Execution
Spiral-fluted design with relief grinding. Diameter 0.5-0.8, ground on one side

Advantage
Radial relief ensures optimum chip breaking


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 2 mm
Shank diameter: 5,00 mm
Min./max cutting edge length: 2.5-3.1 mm
Length: 40 mm
Form: A
Cutting material: HSS
Surface: Uncoated
Countersink angle: 60 Degree
Tool holding device: HA parallel shank
DIN: 333
Cutting speed (steel 700) Vc: 35,00 m/min
f steel 700: 0,04 mm/r
Cutting speed (steel 1000) Vc: 20,00 m/min
Cutting speed (steel 1300) Vc: 10,00 m/min
Cutting speed (aluminium short) Vc: 50,00 m/min
Cutting speed (aluminium long) Vc: 70,00 m/min
Cutting speed (cast) Vc: 20,00 m/min
Cutting speed (VA mar) Vc: 10,00 m/min
f titanium: 0,02 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
Max. cutting edge length: 3,1 mm
Min. cutting edge length: 2,5 mm
Number of cutting edges: 2
Tolerance of cutting edge diameter: h7
Angle of the tip: 118 Degree
Diameter 2: 5,00 mm
Min./max. f in cast iron: 0.06-0.07 mm/U
Min./max. f in non-ferrous metals: 0.07-0.07 mm/U
Min./max. f in steel: 0.06-0.07 mm/U
