Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M10

Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M10

Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M10
Item no: 1014355 110

Online price:

Still in stock: 4

Application
- Metric thread
- Through and blind holes
- Max. drilling depth 3xD
- Up to HRC 60

Execution
  • Tolerance range 6H
  • DIN type C (2-3 chamfer threads)
  • DIN 371/376
  • SC TiAlN+C

Notes
For very hard steels, we recommend drilling the core hole larger by 0.1 to 0.3 mm in deviation from the DIN standard.

Brand: ATORN
Material to be processed: Hard material | Hardened steel
Thread type: Metric thread
Thread dimension: M10
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance/blind hole ≤ 2xD
Lead angle shape: C
Length: 100 mm
Cutting material: SC
Surface: TiAlN plus
Pitch: 1,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,50 mm
Coolant supply: Internal axial
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 1
Cutting speed (hard 65) suitability (ISO H 65HRC): 1

ATORN-No.: 11290230

EAN no.: 4050293132724

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

Often bought together

  • Through hole screw tap M DIN 371 shape B 1.5xD HSS-E M2
    9,67 €
  • Through hole screw tap M DIN 371 shape B 3xD HSS-E M2
    17,63 €
  • Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M2
    17,17 €
  • Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M2
    23,17 €
  • Blind hole screw tap M DIN 371 35° shape C 2xD HSS-E M3
    6,40 €
  • ATORN blind hole screw tap DIN 371 HSS-E 40° for stainless steel M2
    25,03 €
  • Through hole screw tap M uni DIN 371 shape C 2.5xD PM-TiCN M3
    20,10 €
  • Blind hole screw tap M uni DIN 371 45° shape C 2.5xD PM-TiCN M3
    27,26 €
  • Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E to 1,400 N/mm² M3
    14,86 €
  • Through hole screw tap M DIN 371 shape C 2.5xD HSS-E M2
    20,05 €

No workshop should be without it:

  •
    Cs. + cs. deburring tool set 6 pcs 90° HSS-E dia. 6.3-20.5 mm in metal box
    140,14 €
  • Lamella flap disc LSZ-F Vision zirconia alumina grain 60 dia. 125 mm
    8,98 €
  • ATORN dial gauge, 10 mm meas. diff. 0.01 mm graduation shock-res, dia. 58 mm
    39,00 €
  • Kegelsenker-Satz 90° HSS-TiAlN Form C ungl. Teilung 3 Spannflächen Ø 6,3-25,0 mm
    95,00 €
  • ATORN disposable ear plugs, 200 pairs
    28,00 €
  • Twist drill bit set HSS-E Co5 1-13 mm 0.5 mm incremental 25 pieces
    310,78 €
  • ATORN twist drill bit set STEP DRILL type N HSSE purple 1-10 mm 0.5 in box
    143,88 €
  • Ergonomic safety double lock knife SECUPRO 625
    35,18 €
  • ATORN centre drill set HSSE TiN form A, D=1-1.6-2-2.5-3.15-4-5
    263,76 €
  • Protective vice jaw set 125 mm 8 pieces in bag
    67,15 €
  • T-handle 416 RA T-handle Rapidaptor
    57,10 €
  • Spiralbohrer-Satz Sprint Master 25tlg. DIN 338 HSS Ø 1,0-13,0 mm in Kassette
    59,90 €
  • Digitales Drehmoment Testgerät, 5- 500 Nm 3/4 + 3/8 + 1/2 + 1/4 Zoll
    567,76 €
  • ATORN twist drill bit set STEP DRILL type N HSS vaporised 1-10.5 mm 0.5 and CHD
    114,40 €
  • ATORN HSSE machine tap set M3-12 HSSE GL
    110,19 €
  • ATORN A-Shield 3 cut protection glove, size 9
    8,30 €
  • ATORN countersink set, 90°, HSSE, unequal spiral pitch 6.3-25.0 mm
    203,84 €
  • ATORN cross-peen hammer 1,000 g, hickory handle, nylon handle protect. sleeve
    23,21 €
  • ATORN twist drill bit set STEP DRILL type N HSS vaporised 1-10 mm 0.5 in box
    88,53 €
  • ATORN VDE screwdriver set, 3 pcs, cross head PH 1-3
    19,92 €
  • ATORN quick-change bit holder, 1/4 inch x 60 mm
    15,55 €
  • Pneumatic metered blow gun 37 A 90 mm pipe POM Rc 1/4 grommet LW 6
    17,78 €
  • ATORN analogue scriber 600 mm with fine adjustment
    635,50 €
  • ATORN ear plug dispenser
    34,90 €
  • Profi-line intensive brake cleaner spray can 500 ml pack=15 cans
    108,33 €
  • ATORN ear defenders, 33 dB
    15,20 €
  • Pneumatic special oil 100 ml silicone-free with locking cap
    7,30 €
  • Blade scraper Argentax with extra wide handle replaceable blades
    7,84 €
  • Thread limit plug gauge for standard ISO thread DIN 2280 nom. dia. M 6 6H
    40,40 €
  • Spiralbohrer-Satz Sprint Master 19tlg. DIN 338 HSS Ø 1,0-10,0 mm in Kassette
    29,00 €
  • ATORN reusable corded ear plugs
    1,70 €
  • Disposable safety knife SECUMAX 150
    3,09 €
  • ATORN vernier calipers IP67 electr. 150 mm depth gauge flat
    135,00 €
  • Funnel set 6 pieces dia. 50, 75, 100, 120, 150, 160 mm polyethylene
    16,00 €
  • Lamella flap disc Z SG POWER STEELOX, dia. 125 mm, alumina zirconia, 40 grit
    7,22 €
  • Long hexagon ball head pin wrench set 9 pcs in clip AF 1.5/2/2.5/3/4/5/6/8/10
    41,20 €
  • ATORN cross-peen hammer 1,000 g with 3-component handle
    38,56 €
  • ATORN A-Shield 1 cut protection glove, size 9
    7,50 €
  • ATORN HSSE machine tap set M3-12 HSSE DL
    110,19 €
  • ATORN twist drill bit set N HSS TiN head DIN 338 1.0-13.0 mm 0.5 in box
    213,60 €
  • Pneumatic hose reel hose dia. 13 mm, hose length 15 m max. 20 bar
    196,20 €
  • ATORN twist drill bit set STEP DRILL type N HSS vaporised 1-13 mm 0.5 in box
    162,27 €
  • ATORN A-Shield 2 cut protection glove, size 9
    7,60 €
  • ATORN A-View 1 safety glasses
    7,95 €
  • ATORN countersink set, 60°, HSS, extremely unequal pitch 6.3-20.5 mm 3-flat shnk
    178,36 €
  • ATORN countersink set, 60°, HSS, extremely unequal pitch 6.3-20.5 mm
    177,62 €
  • ATORN hexagon screwdriver set, 9 pieces, 1.5–10 mm, with ball head, long
    23,84 €
  • ATORN connector set, 3 pieces, square output
    36,38 €
  • ATORN micrometer 0-25 mm, in case
    50,78 €
  • TX® screwdriver set 9 pieces T10-50
    131,90 €
  • HHW twist drill bit set DIN 338 HSS type N dia. 1-13.0 mm in box
    111,94 €
  • LOCTITE 270 threadlocker 50 g
    60,50 €
  • ATORN LED magnifying lamp, 5 dioptres, 2-stage segment switching, 2.25x
    228,00 €
  • ATORN twist drill bit set STEP DRILL type N HSS TiN head 1-10 mm 0.5 in box
    108,86 €
  • ATORN screwdriver set in workshop stand, 7 pieces
    41,72 €
  • ATORN try square stainless 150 x 100 mm in line with DIN 875 precision 1
    36,37 €
  • ATORN countersink set 90° HSS, extremely unequal pitch 6.3-20.5 mm
    168,49 €
  • ATORN bit box 32 pcs, slotted, PH, PZ, hexagon socket, TX, with holder a. handle
    59,81 €
  • Pliers set, 3 pcs comb. pliers, side cutters, high-tech water pump pliers
    55,44 €
  • ATORN hexagonal Allen key set, 9 pieces, 1.5–10 mm, ball head, colourful
    31,92 €
  • ATORN ear defenders, 37 dB
    17,20 €
  • ATORN countersink set, 90°, unequal spiral pitch 6.3-25.0 mm, 3-flat shank
    216,58 €
  • Spray bottle refillable 227 ml max. operating pressure 8 bar 0.4 kg
    56,80 €
  • T-handle 411 A RA T-handle
    57,10 €
  • ATORN disposable ear plugs, 400 pairs
    49,00 €
  • ATORN corundum abrasive fabric roll (AO) in tear-off box G180 40 mm x 50 m
    33,09 €
  • ATORN cutter blade with 18-mm snap-off blade, metal housing, with slide
    17,40 €
  • ATORN centre drill set HSSE TiALN form A, D=1-1.6-2-2.5-3.15-4-5
    257,04 €
  • ATORN twist drill bit set N HSS TIN head DIN 338 1.0-10.0 mm in assortment case
    598,82 €

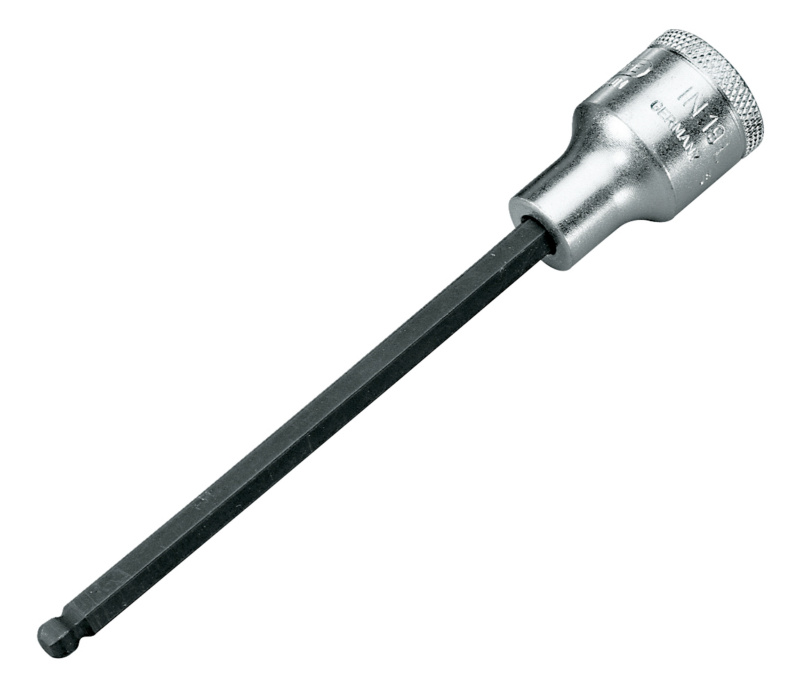

  • ATORN 1/4 inch hexagon socket with flexible blade
