Through hole screw tap M DIN 371 type B 1.5xD HSS-E-TiN for VA steels M3

Through hole screw tap M DIN 371 type B 1.5xD HSS-E-TiN for VA steels M3

Through hole screw tap M DIN 371 type B 1.5xD HSS-E-TiN for VA steels M3
Item no: 1014319 101

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point
  • Improved wear characteristics thanks to TiN coating
  • Tolerance field 6H
  • DIN 371
  • HSS-E TiN


Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M3
Max. thread depth: 1.5xD
Thread dimension: M3
Pitch: 0,5 mm
Cutting material: HSSE
Surface: TiN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 56 mm
Cutting edge length: 11 mm
Core hole diameter: 2,50 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M4
  •
    ATORN screw tap HSSE shape C 40° M2 ISO2 2.5xD CNC UNI for blind hole
  •
    ATORN screw tap HSSE shape C 40° M3 ISO2 2.5xD CNC UNI for blind hole
  •
    ATORN screw tap HSSE shape C 40° M4 ISO2 2.5xD CNC UNI for blind hole
    11,17 €
  • Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E left-cutting M20
  •
    ATORN surface chuck SK50 (ISO 7388-1) dia. 25.0 mm A=80 mm
  •
    Precision round file with fine tip length 150 mm cut 2
  •
    Precision round file with fine tip length 250 mm cut 2
  •
    Precision round file with fine tip length 200 mm cut 3
  •
    TC bur spherical (KUD), shank dia. 6mm, serr. 3 plus, head dia.xlength 10x9mm
  •
    1/2 inch hex socket screwdriver bit long CV steel ball head AF 12 mm
  •

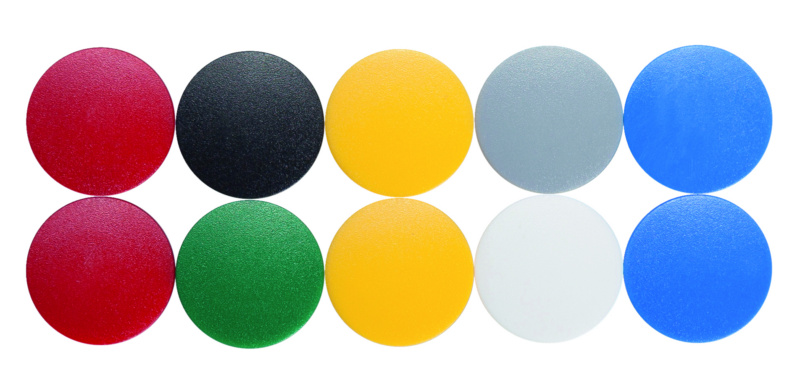

    Magnet MAULsolid w. grip edge coloured
