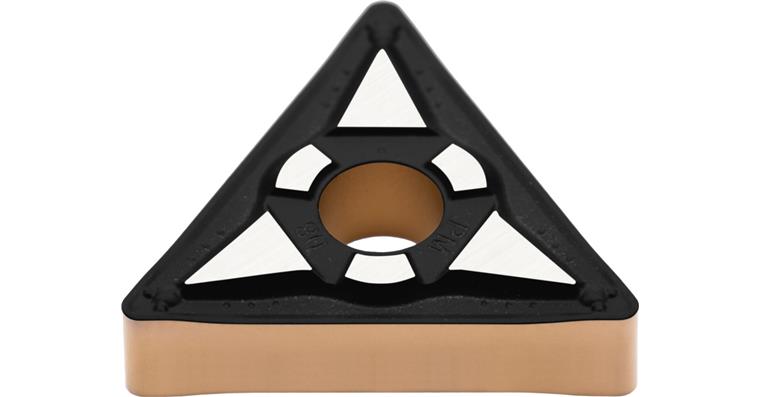

ATORN indexable insert TNMG 220408-MP1 ACP15T-1

ATORN indexable insert TNMG 220408-MP1 ACP15T-1

ATORN indexable insert TNMG 220408-MP1 ACP15T-1
Item no: 1018581 450

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range with favourable cutting conditions

Execution
sintered carbide indexable insert

Advantage
  • very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • positive soft-cutting chip geometry with a wide infeed range and stable cutting edges


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 22
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: TNMG 220408
Material to be processed: Steel | Cast iron
min./max. ap: 0.50-6.60 mm
f min./max.: 0.15-0.50 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,15 mm/r
max. f: 0,50 mm/r
max. ap: 6,60 mm
min. ap: 0,50 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP1
Min./max. Vc in steel: 125-295 m/min
Min./max. Vc in cast iron: 125-295 m/min

ATORN-No.: 12350961

EAN no.: 4066107045777

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN indexable insert DCMT 070204-FP1 ACP25T-1
  •
    ATORN indexable insert SNMM 150612-RP7 ACP15T-1
  •
    ATORN indexable insert VCMT 110304-MP1 ACP25T-1
  •
    ATORN indexable insert WNMG 080408-RP4 ACP15T-1
  •

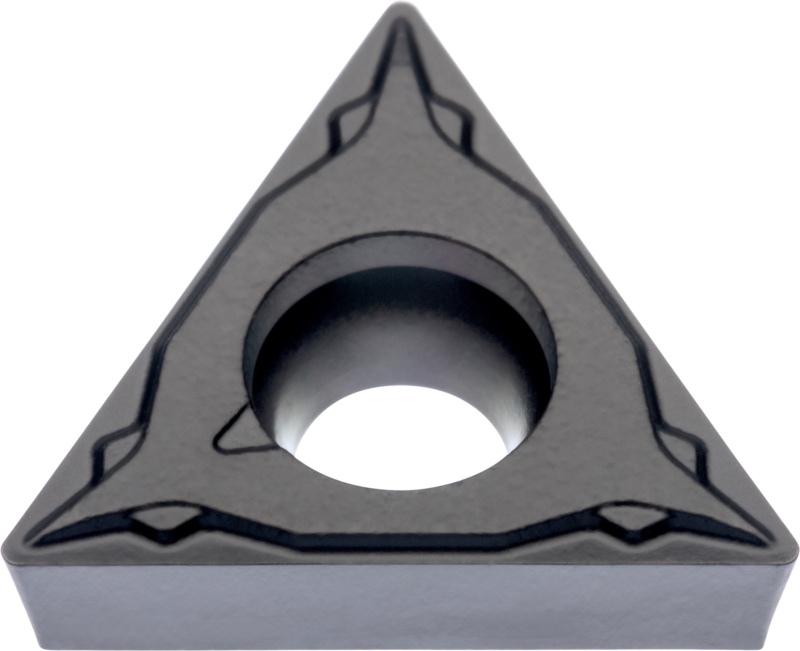

    ATORN indexable insert TCMT 090202-FM2 ACM25T-1
  •
