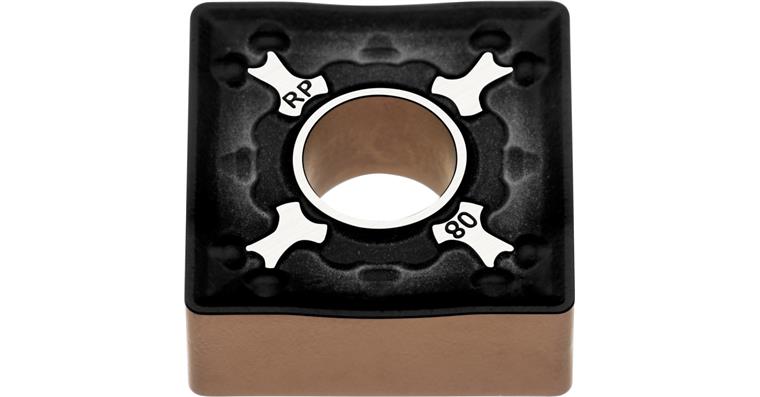

ATORN indexable insert SNMM 150612-RP7 ACP15T-1

ATORN indexable insert SNMM 150612-RP7 ACP15T-1

ATORN indexable insert SNMM 150612-RP7 ACP15T-1
Item no: 1018581 342

Online price:

Available in 6-8 working days.

Notes
SNMM indexable insert, roughing RP7 ACP15T-1

Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: M
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: SNMM 150612
Material to be processed: Steel | Cast iron
min./max. ap: 1-8 mm
f min./max.: 0.15-1.5 mm/U
f min.: 0,15 mm/r
max. f: 1,5 mm/r
max. ap: 8 mm
min. ap: 1 mm
Chip breaker code: RP7
Min./max. Vc in steel: 110-350 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350896

EAN no.: 4066107045128

Product Datasheet Datasheet cutting values
