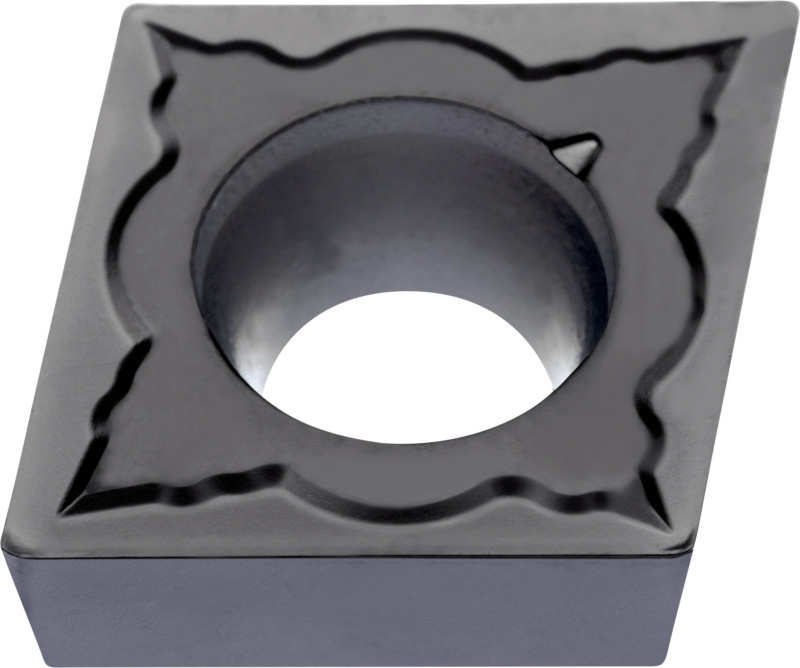

ATORN indexable insert CNMG 120404-MP1 ACP15T-1

ATORN indexable insert CNMG 120404-MP1 ACP15T-1

ATORN indexable insert CNMG 120404-MP1 ACP15T-1
Item no: 1018581 035

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range with favourable cutting conditions

Advantage
  • very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • positive soft-cutting chip geometry with a wide infeed range and stable cutting edges


Brand: ATORN
Machining conditions for indexable insert: Good
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: CNMG 120404
Material to be processed: Steel | Cast iron
min./max. ap: 0.4-5.5 mm
f min./max.: 0.1-0.3 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,1 mm/r
max. f: 0,3 mm/r
max. ap: 5,5 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP1
Min./max. Vc in steel: 125-295 m/min
Min./max. Vc in cast iron: 125-295 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12350709

EAN no.: 4066107043254
