ATORN screw tap HSSE shape C 40° M8 ISO2 2.5xD CNC UNI for blind hole

ATORN screw tap HSSE shape C 40° M8 ISO2 2.5xD CNC UNI for blind hole

ATORN screw tap HSSE shape C 40° M8 ISO2 2.5xD CNC UNI for blind hole
Item no: 1014455 108

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm²

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M8
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 90 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,25 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 6,8 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 6,2 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290834

EAN no.: 4050293380217

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN NC reamer HSSE T=6 D 7-8° 2.47mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212
  • ATORN NC reamer SC T=4 B 7-8° 1.7 mm H7 x 43 mm x 9 mm HA DIN 8093
  • Short twist drill bit DIN 338 type N HSS/TiN ground 6.8 mm
  • ATORN STEP DRILL type N HSS TiN head DIN 338 diameter 4.00 mm
  • NC spotting drill HSSE 90° D 5.0x62 mm
  • ATORN NC reamer HSSE T=6 D 7-8° 4.0mm H7 x 75mm x 19mm HA DIN 212
  • ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 x 38 mm HA DIN 8093
  • ATORN screw tap HSSE shape C 40° M10 ISO2 2.5xD CNC UNI for blind hole

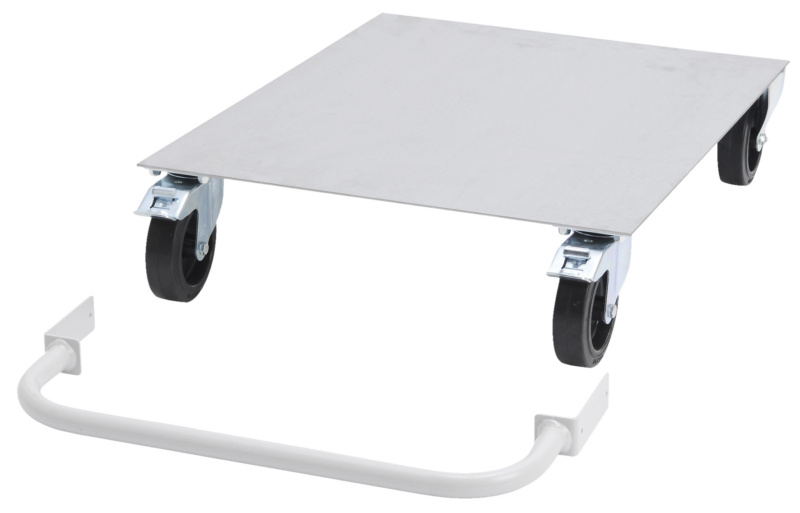

  • Mobile addition 705x736x150 mm RAL 7035 light grey for cabinet 705 mm

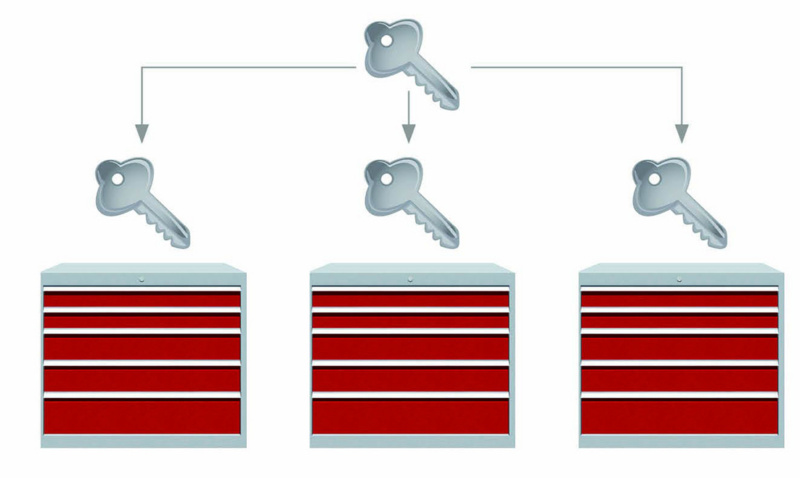

  • Master key for locking system B

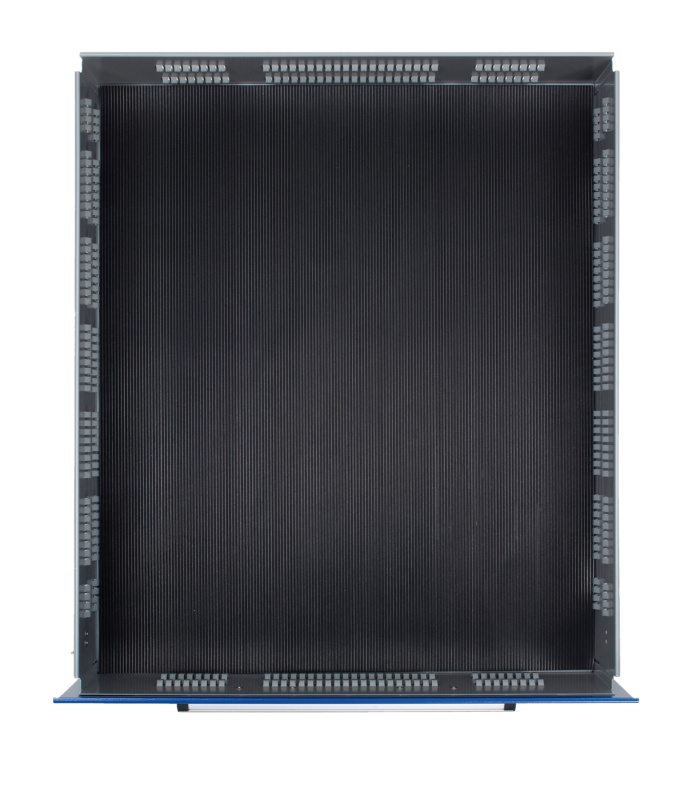

  • Fine-ribbed mat black W722XD595XH3mm
  • Fine-ribbed mat black W1022XD595XH3mm

[Text nicht gefunden]

  • ATORN screw tap HSSE C 376 40° M12 ISO2 2.5xD CNC UNI for blind hole
  • Die, right-cutting DIN EN 22568 with spiral point HSS M 20

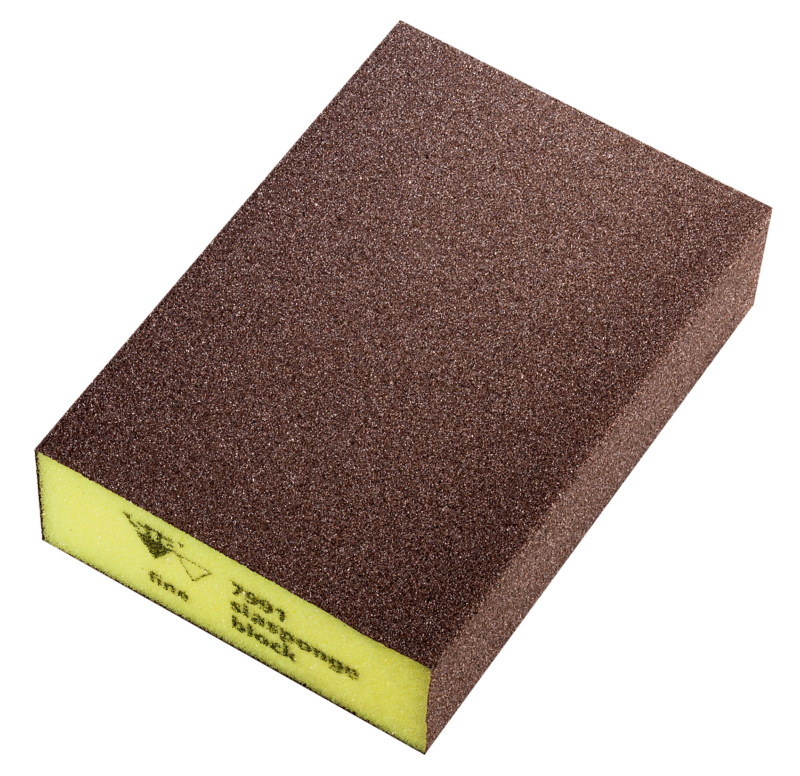

  • Sanding sponge siasponge block soft fineness fine 98x69x26 mm

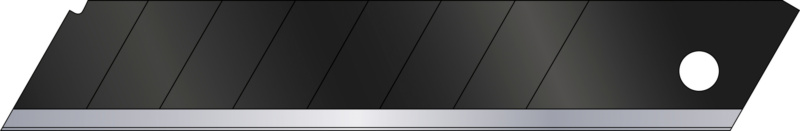

  • Repl. blades pack = 10 pieces for CutiX
