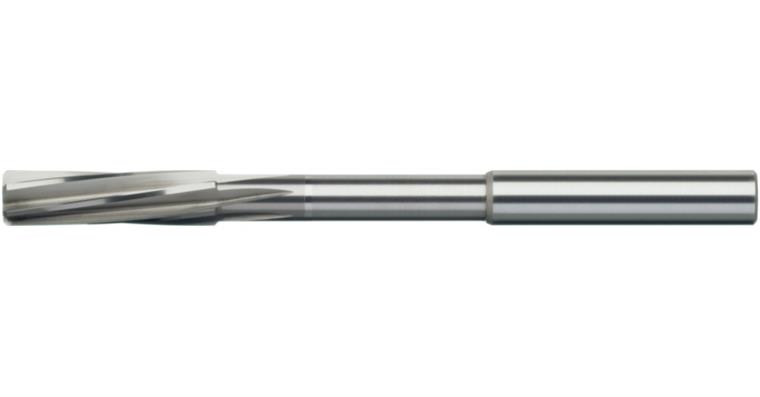

ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 x 38 mm HA DIN 8093

ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 x 38 mm HA DIN 8093

ATORN NC reamer SC T=6 B 7-8° 10.0 mm H7 x 133 x 38 mm HA DIN 8093
Item no: 1013502 243

Online price:

Available for immediate delivery

Application
For producing H7 fit tolerances in through holes on NC machines up to 1300 N/mm².

Execution
7-8° left-hand spiral, type B

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Tolerance of fit: H7
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Surface: Uncoated
Cutting edge diameter: 10 mm
Length: 133 mm
Cutting edge length: 38 mm
Projecting length: 87 mm
Shank diameter: 10 mm
Number of cutting edges: 6 PCS
f steel 1300: 0,15 mm/r
DIN: 8093 similar

ATORN-No.: 10041930

EAN no.: 4050293005509

Product Datasheet Datasheet cutting values
