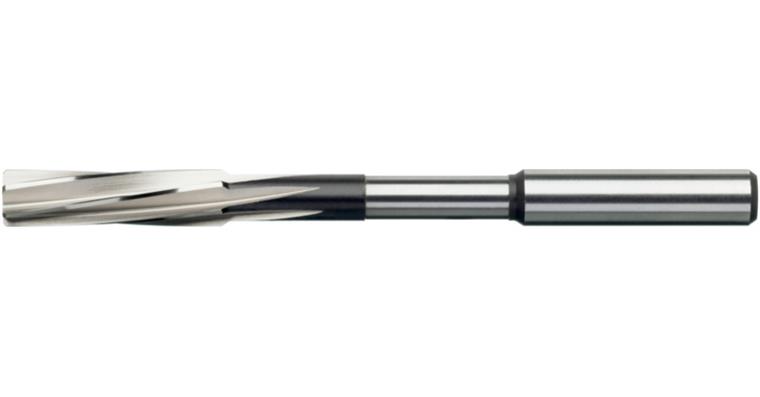

ATORN NC reamer HSSE T=6 D 7-8° 2.47mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 2.47mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 2.47mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212
Item no: 1003130 038

Online price:

Available in 5-7 working days.

Application
for producing fit tolerances in through holes (tolerance=0/+0.003 mm) on NC machines or conventional machines up to 1000 N/mm².

Execution
7-8° left-hand spiral, type D, with centring hole and offset shank

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Tolerance of fit: 0 / +0,003 mm
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Surface: Uncoated
Cutting edge diameter: 2,47 mm
Length: 57 mm
Cutting edge length: 14 mm
Projecting length: 29 mm
Shank diameter: 3 mm
Number of cutting edges: 6 PCS
f steel 1000: 0,1 mm/r
DIN: 212 similar

ATORN-No.: 10041147

EAN no.: 4050293380903

Product Datasheet Datasheet cutting values
