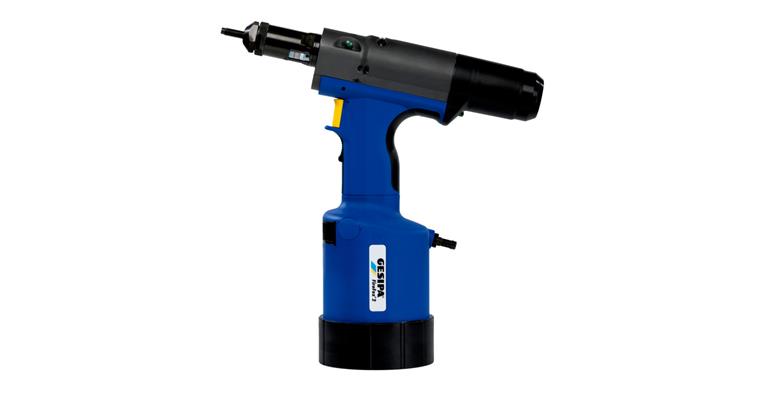

Pneumatic-hydraulic rivet nut setting tool FireFox® 2 for M4-M8

Pneumatic-hydraulic rivet nut setting tool FireFox® 2 for M4-M8

Pneumatic-hydraulic rivet nut setting tool FireFox® 2 for M4-M8
Item no: 1054858 108

Online price:

Available in 6-8 working days.

Application
Sets blind rivet nuts from M3 to M10 in all materials and M12 in aluminium and steel.

Execution
  • The FireFox® 2 can be controlled either via stroke adjustment or via setting force adjustment
  • The latter in particular protects both the material to be joined and the thread, and ensures safe anchoring of the blind rivet nut and high process reliability
  • The choice of whether to control the tool by the stroke or the setting force depends on the length of the blind rivet nut and thickness of the material to be joined
  • The setting force must be adjusted for blind rivet nut sizes with the same or varying lengths in different joining material thicknesses
  • If the same blind rivet nut size and length is always set in the same joint material thicknesses, it is possible to work with a constant setting stroke

Advantage
  • New stroke scale can be set easily and reliably even in poor lighting conditions
  • Restrictor plate: Automatic restrictor for even safer and more gentle setting of M3 blind rivet nuts and larger
  • PTFE sealing rings: PTFE sealing rings and optimised control bore holes for a longer service life of the control spool

Delivery
- 2 double open-end wrenches 24/27 mm
- 4 thread mandrels (M4, M5, M6 and M8) *
- 4 nosepieces (M4, M5, M6 and M8) *
- 1 hexagonal screwdriver AF 4 mm
- 1 refill bottle with hydraulic oil 100 ml
- 1 oil refill container
- 1 operating instructions with spare parts list
- 1 quick setting guide
* Further thread mandrels and nosepieces available as special accessories.


Brand: GESIPA
Type: FireFox® 2
Suitable for min./max. rivet diameter: 5.9-10.9 mm
Rivet setting force: 22000 N
Max. working stroke: 10 mm
Min./max. operating pressure: 5-7 bar
Weight: 3420 g

Manufacturer part no.: 1458086

EAN no.: 4007081056373

Product Datasheet
