ATORN thread milling cutter SC-TIAlN 14 threads/inch 12.0 mm 19 mm

ATORN thread milling cutter SC-TIAlN 14 threads/inch 12.0 mm 19 mm

ATORN thread milling cutter SC-TIAlN 14 threads/inch 12.0 mm 19 mm
Item no: 1014644 105

Online price:

Still in stock: 2

Application
For producing right-hand and left-hand pipe threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Advantage
Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply (IK): External
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 12 mm
Suitable from thread size: G 1/2 inch | G 7/8 inch
Length (L1): 84 mm
Cutting edge length (l2): 19 mm
Shank diameter: 12 mm
Number of cutting edges: 4 PCS
f steel 1000: 0,09 mm/r

ATORN-No.: 11940202

EAN no.: 4050293206319

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN thread milling cutter w/ clearance SC TiAlN M TH/BH 2xD 12.0 mm 1 mm HA
  •
    ATORN thread milling cutter w/ clearance SC TiAlN M TH/BH 2xD 16.0 mm 2 mm HA
  •
    ATORN thread milling cutter w/ clearance SC TiAlN M TH/BH 2xD 20.0 mm 2 mm HA
  •
    ATORN drill bit for machine tap, solid carbide TiN M10 8.5mm
  •
    NC spotting drill, solid carbide, 90° diameter 16 mm x 115 mm HB shaft
  •
    NC spotting drill, solid carbide, 90° diameter 20 mm x 131 mm HB shaft
    224,28 €
  • NC spotting drill, solid carbide 120°, diameter 10 mm x 89 mm HB shaft
    52,16 €
  • ATORN thread milling cutter SC-TIAlN 11 threads/inch 12.0 mm 24.2 mm
  •
    ATORN thread milling cutter SC-TIAlN 11 threads/inch 16.0 mm 38.1 mm
  •
    COF handles for trays 2.0 white
    13,00 €

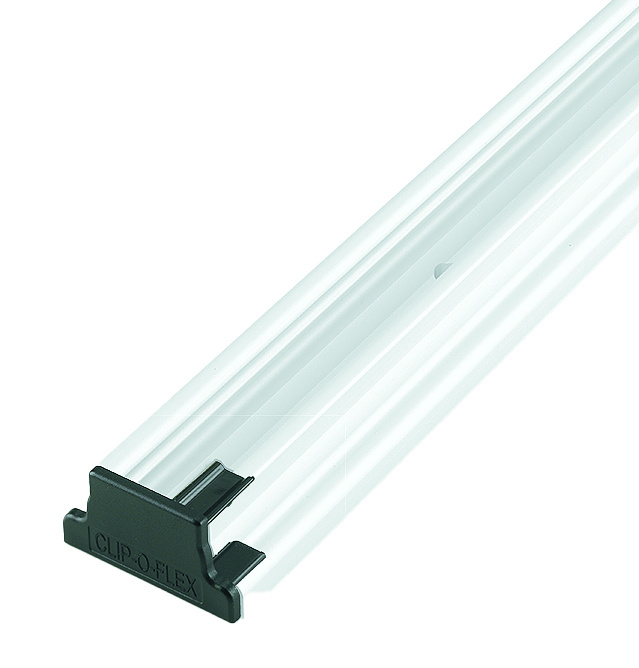

  • COF end caps VPE-10
    10,00 €

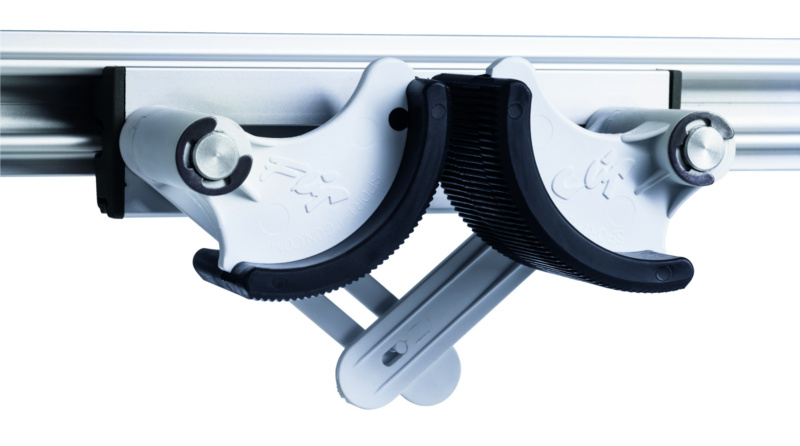

  • COF FLIP CLIP regular 1
