ATORN load cell, measuring range 0-40 kN, scale interval 1 kN

ATORN load cell, measuring range 0-40 kN, scale interval 1 kN

ATORN load cell, measuring range 0-40 kN, scale interval 1 kN
Item no: 1038801 113

Online price:

Available in 4-6 working days.

Application
For static and quasi-static force measurement on machines and equipment, e.g. hydraulic presses, rolling machines, calenders, bending machines, strength testing machines, torque meters etc.

Execution
  • Analogue manometer, diameter 63 mm with trailing pointer
  • Force measuring cell made from VA steel in slim design
  • Integrated throttle damping
  • Two M6 fixing threads on housing floor

Advantage
  • Very slim design for in constricted spaces
  • Integrated throttle damping for light, abrupt loading and unloading

Delivery
With calibration certificate, in plastic case


Brand: ATORN
Min./max. force of measuring range: 0-40 kN
Scale value, force: 1 kN
Outer diameter: 75 mm
Overall height of force sensor: 28 mm
Piston diameter: 45 mm
Protruding piston height: 3 mm
Fastening thread: 2 x M6
Fastening thread clearance: 55 mm
Mean distance between manometer and force sensor: 82 mm
Error limit, based on end value: +/- 2 %
Manometer diameter: 63 mm

ATORN-No.: 41570015

EAN no.: 4050293187205

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

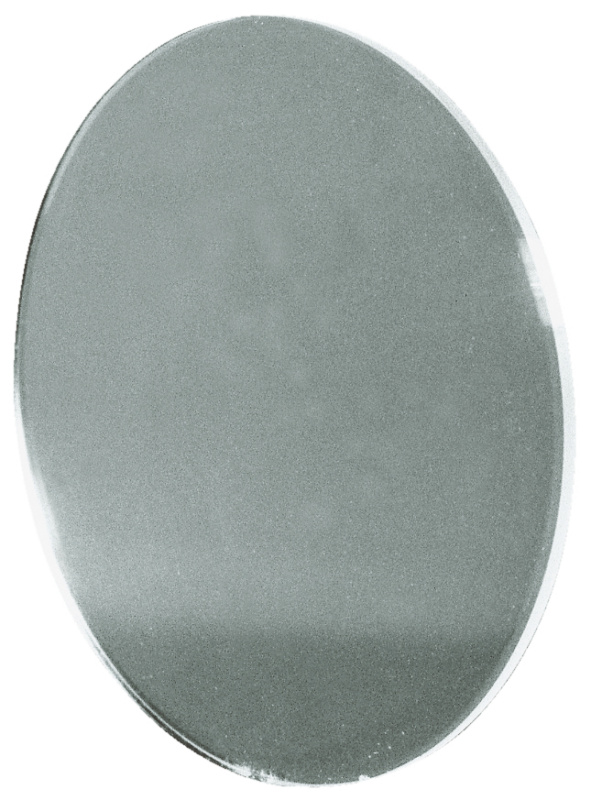

  • Replacement glass for dial gauges with housing diameter 58 mm
  •
    ATORN load cell, measuring range 0-400 N, scale interval 10 N
  •
    High-helix pin machine reamer DIN 212 cyl. spiral-fluted HSS-E 8 mm
  •
    Repl. rotator for sand. disc dress. tool, silicon carbide, size 0, dia. 45 mm
  •
    Kompaktlängenmessgerät Millimar C1200 T
  •
    Clamping screw basic assortment 46 pieces groove nominal size 18 M16
  •
    Machine reamer DIN 212 cyl. spiral-fluted HSS-E TiN 7 mm
  •
    Machine reamer DIN 212 cyl. spiral-fluted HSS-E TiN 5 mm
  •
    High-helix pin machine reamer DIN 212 cyl. spiral-fluted HSS-E 6 mm
  •

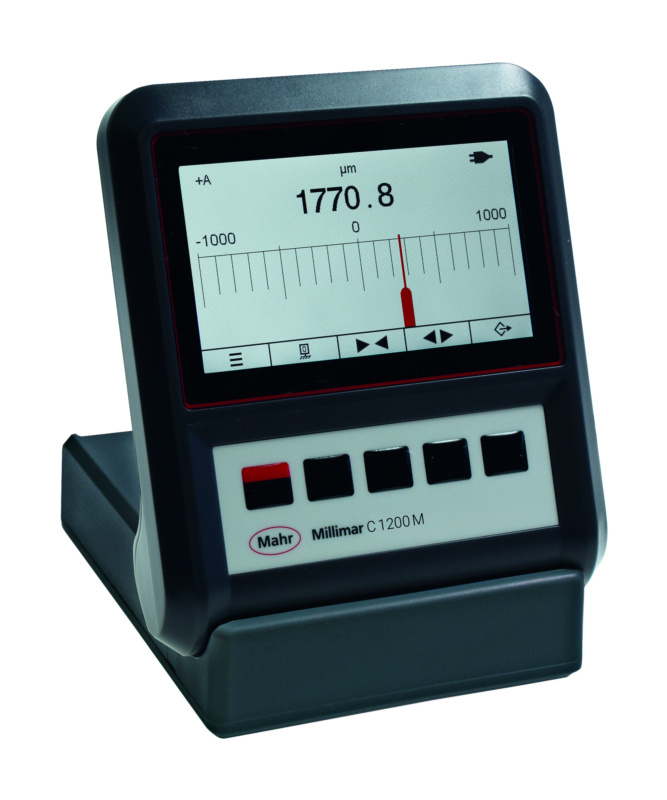

    Kompaktlängenmessgerät Millimar C1200 M
  •
