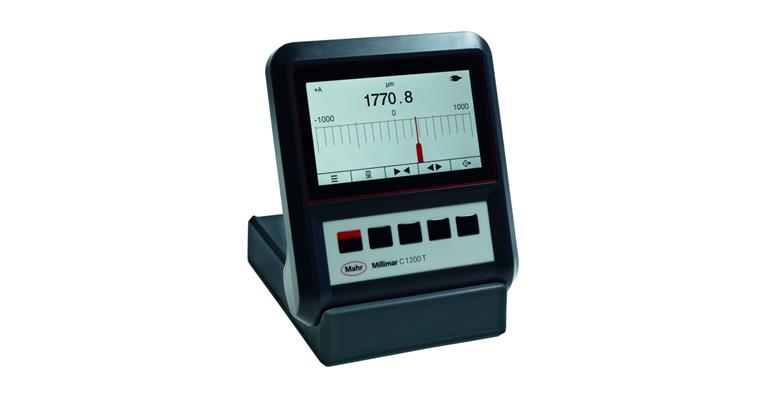

Brand: MAHR
Model: C 1200
Type: TESA kompatibel
Width: 130 mm
Height: 170 mm
Depth: 150 mm
Measuring range of electronic length measuring technology: +/- 10 µm | +/- 30 µm | +/- 100 µm | +/- 300 µm | +/- 1000 µm | +/- 2000 µm | +/- 5000 µm | +/- 3 µm
Scale value, electronic display unit: 0.2 µm | 1 µm | 2 µm | 10 µm | 20 µm | 100 µm | 200 µm | 500 µm
Digit increment, electronic display unit: 0.1 µm
Data transmission type: Opto RS232C, USB, Digimatic, Wireless
Data cable type: H1 | H2 | H3
Number of measuring sensor connections: 1 PCS
Functions: Tolerance value entry | Preset function | Lock-function (Keybord lock) | On/Off | With mm / inch switching | Reversal of counting direction | Minimum / Maximum measurement
IP protection class: IP 42
Energy supply: Mains and battery operation

Manufacturer part no.: 5312011

EAN no.: 4059192062002

Product Datasheet
