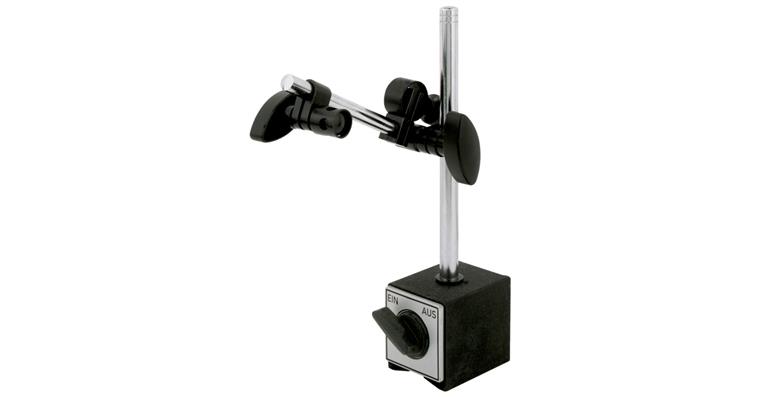

Magnetic measuring stand magnetic base switchable height 230 mm overhang 150 mm

Magnetic measuring stand magnetic base switchable height 230 mm overhang 150 mm

Magnetic measuring stand magnetic base switchable height 230 mm overhang 150 mm
Item no: 1034013 101

Online price:

Available for immediate delivery

Application
Ideal for use with lever gauge probes and small dial gauges.

Execution
  • With high retaining force
  • Can be switched on and off by rotary switch
  • Prismatic base
  • Transverse arm with joint and fine adjustment of the dial gauge
  • For dial gauges with shank dia. 8 mm (h 6)
  • Column and transverse arm chrome-plated

Delivery
Without dial gauge

Notes
Magnetic base and linkage are also deliverable individually on request. For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank

Brand: LIZZARD
Overall height: 230 mm
Overhang: 150 mm
Column diameter: 12 mm
Adherence strength: 500 N
Base size: 65 x 48 x 55 mm
Measuring arm diameter: 10 mm
Base height: 55 mm
Base width: 48 mm
Foot length: 65 mm

EAN no.: 4024496236121
