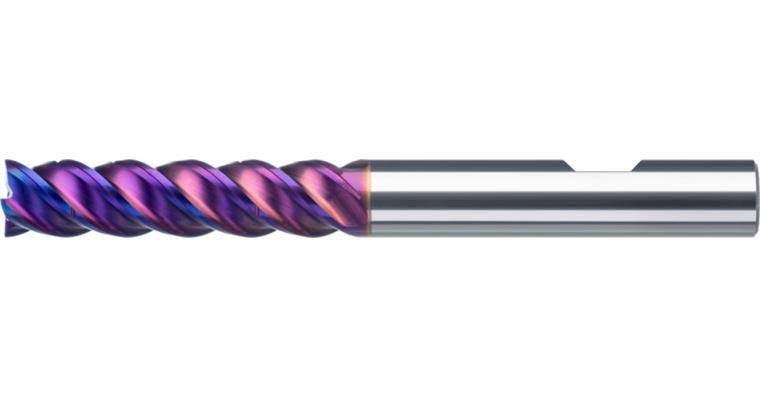

ATORN SC TVC end mill 20x82x150 mm T4 HB shank 4xD RT Pro

ATORN SC TVC end mill 20x82x150 mm T4 HB shank 4xD RT Pro

ATORN SC TVC end mill 20x82x150 mm T4 HB shank 4xD RT Pro
Item no: 1016796 220

Online price:

Available in 6-8 working days.

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting lengths of 3xD and 4xD, reinforced cores and specially developed chip breaker geometries allow for deep operating depths with maximum process reliability.

Execution
  • Cutting material, Ultra Micro fine grain
  • Cutting edge finish
  • Straight shank in line with DIN 6535 HB
  • Type H
  • Centre cutting and edge protection chamfer
  • Special chip breakers for short chips
  • Uneven twist angle
  • With RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 20 mm
Cutting edge length: 82 mm
Length: 150 mm
Shank diameter: 20 mm
fz hard 65 HRC: 0,13 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264476

EAN no.: 4066107012878

Product Datasheet Datasheet cutting values
