Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63L diameter 12.5 x 50 mm

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63L diameter 12.5 x 50 mm

Mill arbor for screw-on mill cutters DIN 69893 A HSK-A63L diameter 12.5 x 50 mm
Item no: 1021841 110

Online price:

Available in 8-10 working days.

Execution
Hollow shank taper with gripper groove, concentricity between the taper and internal cone less than or equal to 0.008 mm. Pre-balanced according to G 6.3-15,000 rpm


Brand: HHW
Adapter diameter (d): 12,5 mm
Tapered diameter (d2): 21,0 mm
Outer diameter (D): 24,0 mm
Projecting length (A): 76,0 mm
Clearance length to collar (L): 50,0 mm
Suitable for thread (g): M12
Balancing quality: G 2.5 at 25,000 rpm
Coolant supply: Internal
Form: A
Max. concentricity: 0,008 mm
Tool holding device: HSK 63

EAN no.: 4024496064472

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN DIN 22568 die with spiral point tap MF30X1 6g
  •
    Tool holder for drill chucks DIN 2080 A SK40/M16 B16
  •
    Tool holder for drill chucks DIN 2080 A SK50/M24 B16
  •
    ATORN chuck for solid drill bits HSK63 (ISO 12164) dia. 32 mm A=90 mm
  •
    ATORN chuck for solid drill bits HSK100 (ISO 12164) dia. 25 mm A=95 mm
  •
    ATORN chuck for solid drill bits HSK100 (ISO 12164) dia. 32 mm A=100 mm
  •
    ATORN chuck for solid drill bits HSK100 (ISO 12164) dia. 40 mm A=110 mm
  •

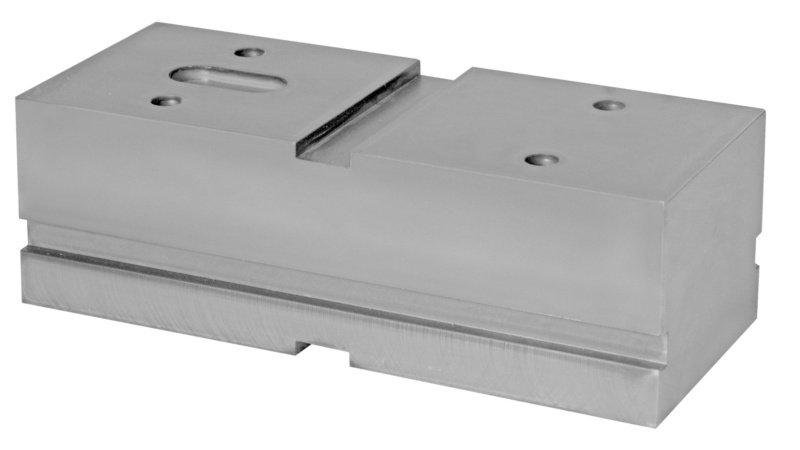

    Five-axis compact clamp base bracket 100x126x250 mm
  •
    Folding rule beech wood yellow length 1 m width 16 mm number of sections 6
  •

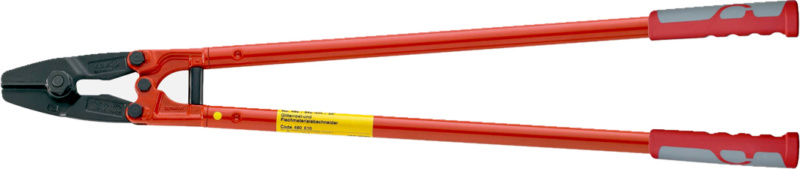

    Gitterrost- und Flachmaterialabschneider 840 mm Schneidleistung bis 40x4 mm
  •

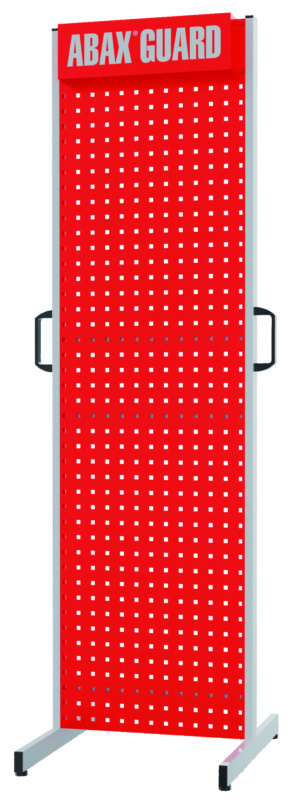

    ABAX Guard Station stationär einseitig RAL 7035/3020
  •
