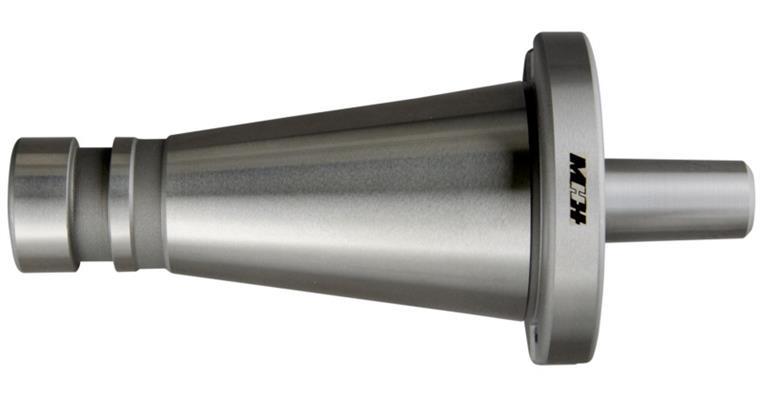

Tool holder for drill chucks DIN 2080 A SK50/M24 B16

Tool holder for drill chucks DIN 2080 A SK50/M24 B16

Tool holder for drill chucks DIN 2080 A SK50/M24 B16
Item no: 1021600 103

Online price:

Available in 8-10 working days.

Application
For mounting drill chucks on milling machines.

Execution
Steep taper with inner clamping thread and ring groove


Brand: LIZZARD
Drill chuck taper (D): B 16
Tool holding device: SK 50
Projecting length (A): 20,0 mm
Tightening thread: M24
DIN: 2080
Balancing quality: G 6,3 at 7000 rpm
Construction length: Short
Max. concentricity: 0,005 mm
Standard shank design: DIN 2080

EAN no.: 4024496059836

Product Datasheet
