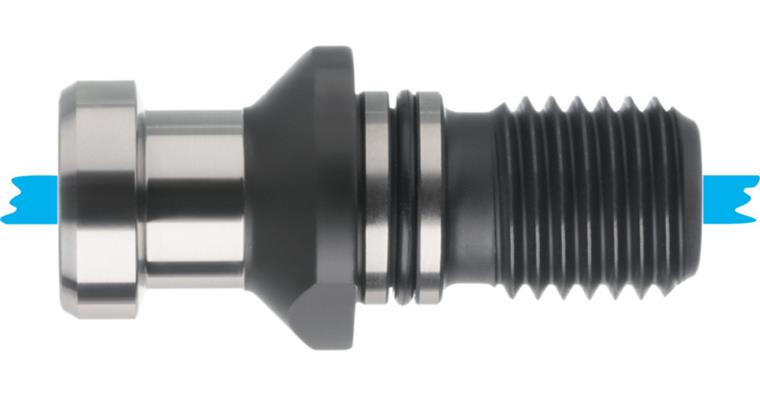

ATORN pull stud DIN 69872 A, SK40, with hole

ATORN pull stud DIN 69872 A, SK40, with hole

ATORN pull stud DIN 69872 A, SK40, with hole
Item no: 1021733 101

Online price:

Available for immediate delivery

Application
For tools with steep taper in accordance with ISO 7388-1 (former standard was DIN 69871) and ISO 7388-2 (old standard was JIS B 6339 MAS-BT).

Execution
  • All pull studs made from material 16Mn Cr5
  • Case-hardened HRc 58 ± 2
  • Thread and bore hole soft, black oxide and polished
  • Pull studs with O-ring = sealed

Delivery
1x SK pull stud ISO 7388-1

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
Suitable for tool holding device: SK 40
Form: A
Outer diameter (D1): 19 mm
Bolt diameter (D2): 14 mm
Diameter (D): 17 mm
Suitable for screw thread (d5): M16
Length (L): 54 mm
Coolant supply: Yes
Angle (α/ A): 15 Degree
Length of tenon (L1): 26 mm
DIN: 69872

ATORN-No.: 20800002

EAN no.: 4050293200607

Product Datasheet
