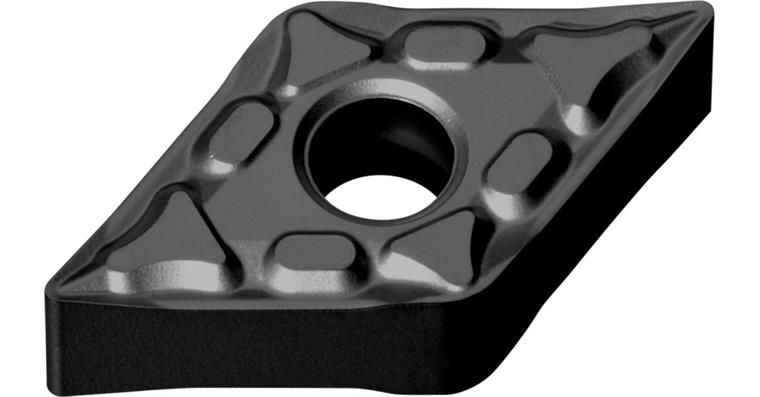

ATORN indexable insert DNMG 150604 finishing FM HC7820

ATORN indexable insert DNMG 150604 finishing FM HC7820

ATORN indexable insert DNMG 150604 finishing FM HC7820
Item no: 1018567 219

Online price:

Available in 4-6 working days.

Advantage
  • Perfect combination of toughness and resistance to wear, for a high degree of process stability and broad range of applications
  • Very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820
ISO-Code Rotating: DNMG 150604
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.4-1.5 mm
f min./max.: 0.04-0.12 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,04 mm/r
max. f: 0,12 mm/r
max. ap: 1,5 mm
min. ap: 0,4 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 110-250 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875198

EAN no.: 4066107006013

Product Datasheet
