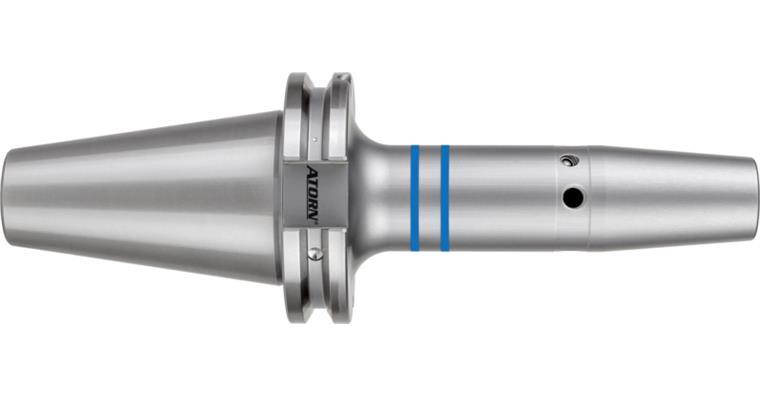

ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 12 mm A=120 mm

ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 12 mm A=120 mm

ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 12 mm A=120 mm
Item no: 1021615 207

Online price:

Still in stock: 1

Application
For clamping cutters and drills with straight shanks in h6 tolerance. Suitable for shrinking onto inductive contact and hot air devices.

Execution
  • Guarantees maximum concentricity of 0.003 mm
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • Adjustment travel 10 mm, can be adjusted on both sides
  • 4 additional drill holes for fine balancing
  • With Balluff chip hole

Advantage
  • High transmittable torques
  • Heat-resistant and high-temperature tool steel 1,600-1,800 N/mm²
  • High positioning and repeat accuracy
  • Ideal for high rotation speeds

Delivery
1x SK40 shrink-fit chuck (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Clamping diameter (d): 12 mm
Projecting length (A): 120 mm
Tapered diameter (d2): 18 mm
Outer diameter (D): 28 mm
Max. clamp in depth (max. L2): 47 mm
Form: AD/AF
Concentricity tolerance: 0,003 mm
Max. adjustment travel (max. V): 10 mm
Suitable for thread (G): M10 x 1
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
DIN: 69871-1

ATORN-No.: 21044732

EAN no.: 4050293370058

Product Datasheet
