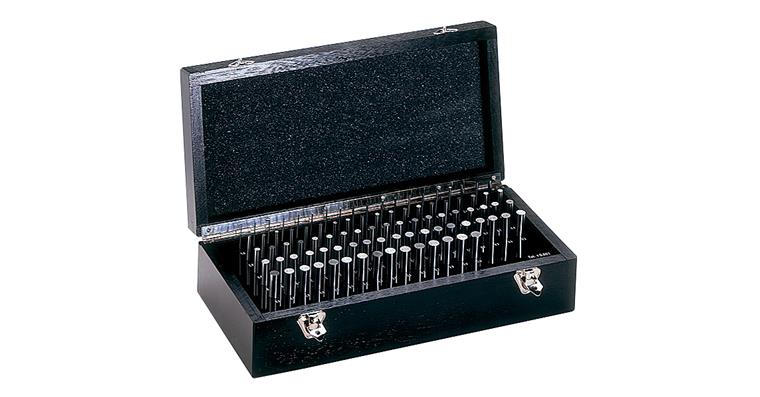

ATORN test pin set, gauge steel, TK1, 1.00-10.00 mm in 0.01 mm increments

ATORN test pin set, gauge steel, TK1, 1.00-10.00 mm in 0.01 mm increments

ATORN test pin set, gauge steel, TK1, 1.00-10.00 mm in 0.01 mm increments
Item no: 1032643 115

Online price:

Available in 5-7 working days.

Application
For measuring bore hole clearances, bore diameters, angularity of bores etc.

Execution
  • Ground and lapped
  • Hardened 60–64 HRC
  • from diameter 3.00 mm: One end with 30-45° chamfer; other end deburred with diameter marking on end face
  • diameter from 1.5 to 2.999 mm: One end with 30-45° chamfer; other end deburred with diameter marking on outer surface
  • diameter from 1.00 to 1.499 mm: One end with 30-45° chamfer; other end deburred without diameter marking
  • up to 0.999 mm: both ends deburred, without diameter marking

Delivery
In wooden case


Brand: ATORN
Min./max. diameter: 1.00-10.00 mm
Tolerance class: 1
Material: Gauge steel
Length: 70 mm
Type: in 0.01 mm increments
Number of pieces in assortment/set: 901 PCS
Nominal dimension of measuring pins: 1.00-10.00 mm, increasing by 0.01 mm
Number of bins: 12
DIN: 2269

ATORN-No.: 32171015

EAN no.: 4050293158854

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC miniature torus milling cutter long dia. 1.5x12.0x50mm R0.2 Z2 RT65
  •
    Carbide int. corner lathe chisel DIN 4974/ISO 9 right set. angle 88° P20 20 Q
  •
    ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 10 mm A=80 mm
  •
    ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 3 mm A=120 mm
  •
    ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 14 mm A=120 mm
  •
    ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 18 mm A=120 mm
  •
    ATORN test pin set, gauge steel, TK1, 9.01-10.00 mm in 0.01 mm increments
  •
    ATORN test pin set, gauge steel, TK2, 9.01-10.00 mm in 0.01 mm increments
  •
    Comb. wrench set with ring ratchet 6 pieces AF 8/10/12/13/17/19 mm
    172,98 €

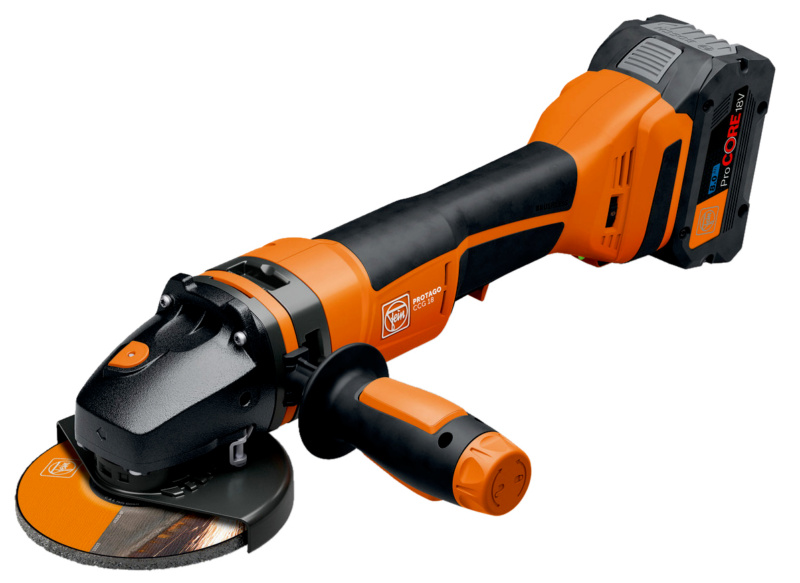

  • Akku Winkelschleifer Typ CCG 18-125-10 PD-SEC AS Ø125mm Set 8Ah ProCORE
  •
