ATORN chuck for solid drill bits HSK63 (ISO 12164) dia. 20 mm A=80 mm

ATORN chuck for solid drill bits HSK63 (ISO 12164) dia. 20 mm A=80 mm

ATORN chuck for solid drill bits HSK63 (ISO 12164) dia. 20 mm A=80 mm
Item no: 1021845 215

Online price:

Available in 8-10 working days.

Application
This chuck is used to clamp indexable insert solid drill bits that are fixed with two screws, similar to a surface chuck.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm, black oxide finish
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm

Delivery
1x HSK63 or HSK100 solid drill chuck (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Form: A
Clamping diameter (d): 20 mm
Outer diameter (D): 40 mm
Projecting length (A): 80 mm
Clearance length to collar (L2): 54 mm
Clamp in depth (L3): 47 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 22661004

EAN no.: 4050293714197

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN chuck for solid drill bits HSK63 (ISO 12164) dia. 25 mm A=90 mm
  •
    ATORN screw-in holder HSK63 (ISO 12164) dia. 6 mm A=51 mm
  •
    ATORN chuck for solid drill bits HSK100 (ISO 12164) dia. 25 mm A=95 mm
  •
    ATORN chuck for solid drill bits HSK63 (ISO 12164) dia. 40 mm A=105 mm
  •
    Wire-twisting pliers, serrated jaws for wires up to max. 1.04 mm dia. L=224 mm
  •
    ATORN screw-in holder HSK63 (ISO 12164) dia. 8 mm A=51 mm
  •
    ATORN screw-in holder HSK63 (ISO 12164) dia. 8 mm A=76 mm
  •
    Strapping machine semi-automatic eco-pack height-adjustable
  •
    ATORN chuck for solid drill bits HSK100 (ISO 12164) dia. 20 mm A=90 mm
  •
    PWS 8000-1 precision scales, 0.1 g resolution
    1.101,00 €

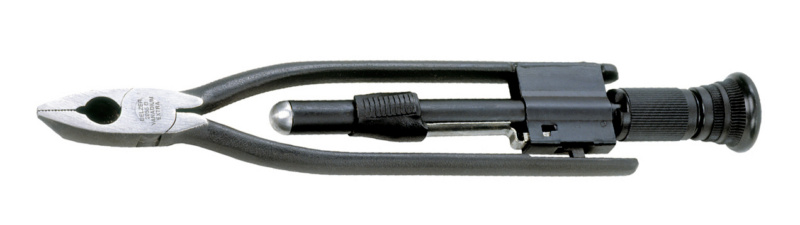

  • Wire twisting pliers, automatic return action R/L for wires up to 1.6 L=282
  •
