ATORN reducing sleeve 32mm d1=25mm

ATORN reducing sleeve 32mm d1=25mm

ATORN reducing sleeve 32mm d1=25mm
Item no: 1021582 121

Online price:

Available in 4-6 working days.

Application
For reducing the clamping diameter. For drilling, reaming, milling and sharpening tools.

Execution
  • Suitable for all expansion chucks
  • Polished

Delivery
1x reducing sleeve for standard hydraulic expansion chucks

Notes
Caution: Never clamp without a tool - the reducing sleeve will be damaged.

Brand: ATORN
Chuck clamping diameter (Futter-Spanndurchmesser d1): 32 mm
Clamping diameter (Spanndurchmesser d): 25 mm
Collar diameter (Bunddurchmesser d2): 36 mm
Insertion depth (Einstecktiefe l2): 56 mm
Max. insert depth (Einsatztiefe l): 60 mm
Length (Länge L1): 64 mm
Concentricity tolerance: 0,003 mm
Coolant supply: No

ATORN-No.: 20803249

Product Datasheet
Additional articles

Please select a button.

Replacement article
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN centre drill bit HSSE extra-long 4.0 mm x 10 mm x 200 mm
    63,02 €
  • ATORN test pin RSB TC1 11.11 mm x 70 mm
  •
    Machine tap similar to DIN 2181 straight HSS-E short NPT 1.
  •
    ATORN reducing sleeve 20 mm/14mm, sealed
    122,88 €
  • ATORN reducing sleeve 32 mm/20mm, sealed
  •
    ATORN mounting clamping module type K 20 round hydraulic diameter 112 mm
    1.206,96 €
  • ATORN mounting clamping module type K 20 with indexing diameter 112 mm
  •
    Articulated hook wrench with lug and suspension hole for nuts dia. 90-155 mm
  •
    Drill bit holder for perforated plates with hole 10x10 mm for 14 pieces
    20,02 €
  • CNC plastic insert mount HSK A 100/B 125 oil-resistant ABS black
  •
    Electrician's hard hat uvex pheos E 30 mm Euro slot mount size 51-61 cm white
  •

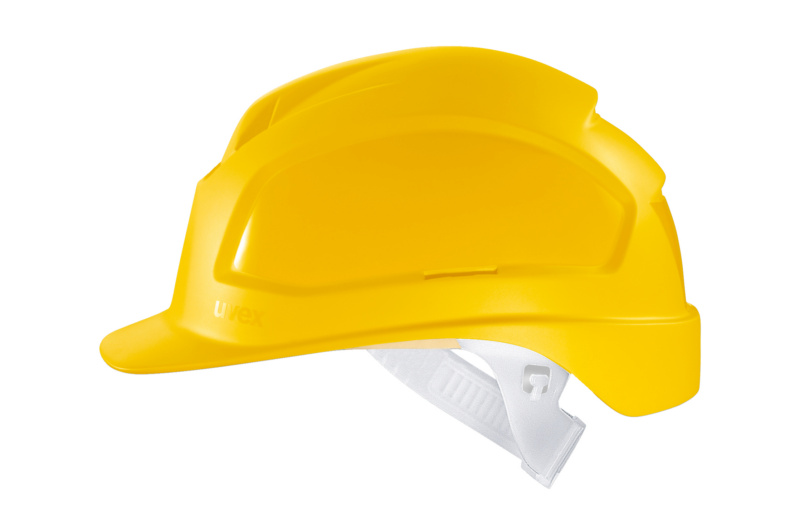

    Electrician's hard hat uvex pheos E 30 mm Euro slot mount size 51-61 cm yellow
