Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: X
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M35
Carbide type: APM35T

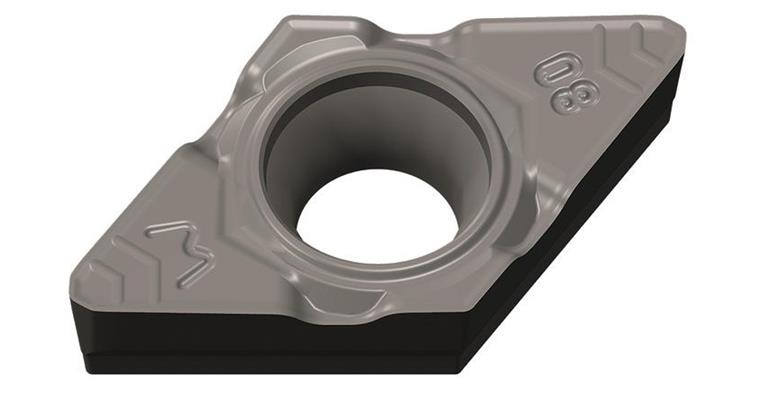

ISO-Code Rotating: DCMX 11T304
Material to be processed: Stainless steel | Steel
min./max. ap: 1.0-3.5 mm
f min./max.: 0.15-0.3 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,15 mm/r
max. f: 0,3 mm/r
max. ap: 3,5 mm
min. ap: 1,0 mm
Supply type: Smoothing
Chip breaker code: FP2
Min./max. Vc in steel: 90-200 m/min
Min./max. Vc in stainless steel: 170-240 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370821

EAN no.: 4050293729764
