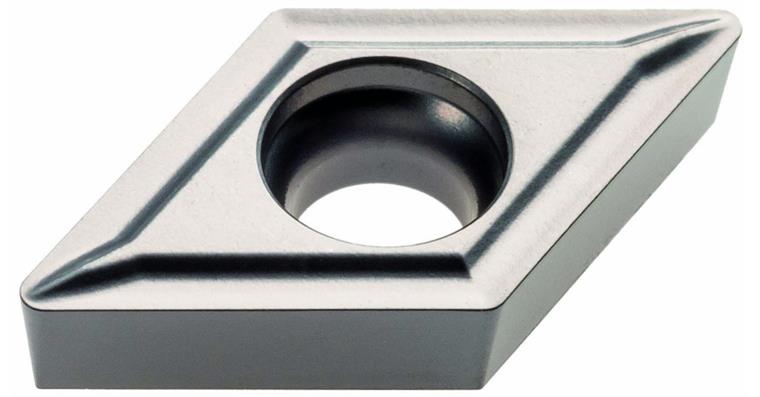

ATORN carbide indexable insert DCGT 070200-FFM APM20T

ATORN carbide indexable insert DCGT 070200-FFM APM20T

ATORN carbide indexable insert DCGT 070200-FFM APM20T
Item no: 1019406 120

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for protection against ridge cracking and temperature influences
  • Universal use


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 00
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: APM20T
ISO-Code Rotating: DCGT 070200
Material to be processed: Cast metal | Stainless steel | Special alloy | Non-ferrous metal
min./max. ap: 0.05-1.35 mm
f min./max.: 0.14-0.2 mm/U
Materials group: M (primary application) | K (secondary application) | N (secondary application) | S (secondary application)
f min.: 0,14 mm/r
max. f: 0,2 mm/r
max. ap: 1,35 mm
min. ap: 0,05 mm
Supply type: Fine smoothing
Chip breaker code: FFM
Min./max. Vc in cast iron: 120-160 m/min
Min./max. Vc in stainless steel: 120-200 m/min
Min./max. Vc in non-ferrous metals: 120-400 m/min
Min./max. Vc in special alloys: 20-80 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370781

EAN no.: 4050293729368

Product Datasheet
