Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 01
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N15
Carbide type: AWN15T

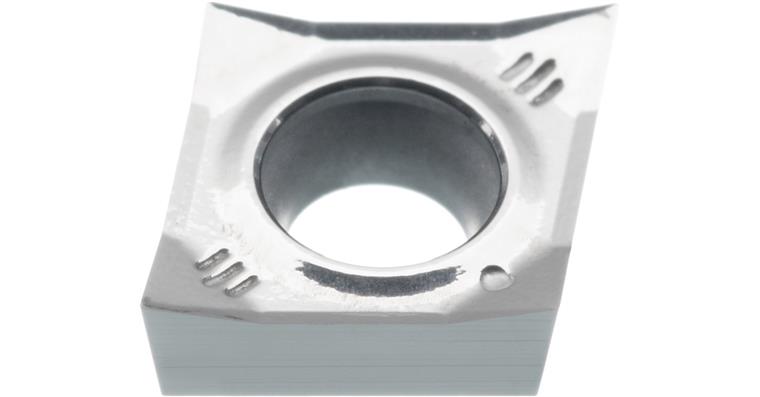

ISO-Code Rotating: CCGT 060201
Material to be processed: Non-ferrous metal | Cast metal | Special alloy
min./max. ap: 0.1-4.5 mm
f min./max.: 0.1-0.5 mm/U
Materials group: N (primary application) | K (secondary application) | S (secondary application)
f min.: 0,1 mm/r
max. f: 0,5 mm/r
max. ap: 4,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN5
Min./max. Vc in cast iron: 120-200 m/min
Min./max. Vc in non-ferrous metals: 100-2000 m/min
Min./max. Vc in special alloys: 20-50 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370138

EAN no.: 4050293565515
