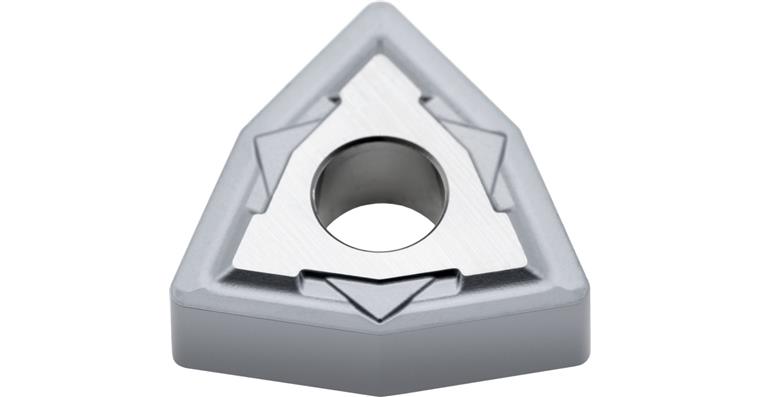

ATORN cemented carbide indexable insert WNMG 080408-MS1 APS10T

ATORN cemented carbide indexable insert WNMG 080408-MS1 APS10T

ATORN cemented carbide indexable insert WNMG 080408-MS1 APS10T
Item no: 1019431 150

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: S
Machining conditions for indexable insert: Good
Carbide type ISO: S10
Carbide type: APS10T
ISO-Code Rotating: WNMG 080408
Material to be processed: Special alloy | Stainless steel
min./max. ap: 0.25-3 mm
f min./max.: 0.08-0.3 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,08 mm/r
max. f: 0,3 mm/r
max. ap: 3 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MS1
Min./max. Vc in stainless steel: 60-230 m/min
Min./max. Vc in special alloys: 30-120 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370105

EAN no.: 4050293565188

Product Datasheet
