Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1

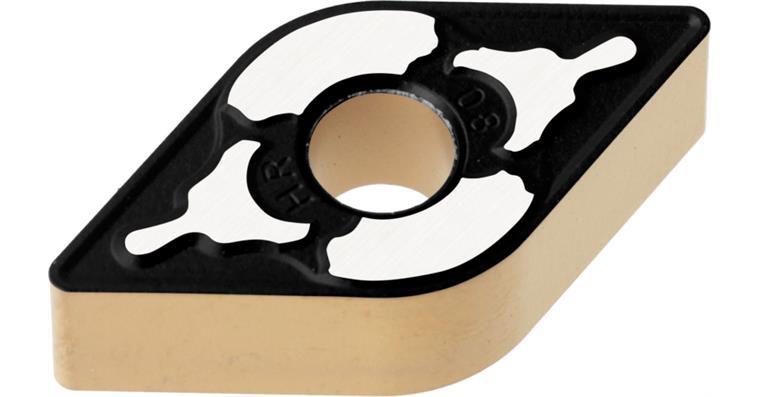

ISO-Code Rotating: DNMG 150412
Material to be processed: Steel | Cast iron
min./max. ap: 1.00-6.00 mm
f min./max.: 0.10-0.45 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,10 mm/r
max. f: 0,45 mm/r
max. ap: 6,00 mm
min. ap: 1,00 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP4
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350796

EAN no.: 4066107044121

Product Datasheet Datasheet cutting values
