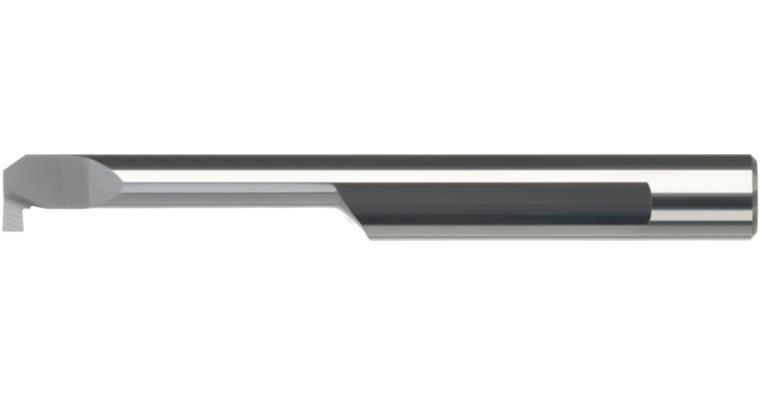

ATORN mini cutting insert AGR 6.0mm B1.0 L22 HW5615

ATORN mini cutting insert AGR 6.0mm B1.0 L22 HW5615

ATORN mini cutting insert AGR 6.0mm B1.0 L22 HW5615
Item no: 1018317 184

Online price:

Available in 4-6 working days.

Application
For internal recessing in the material groups steel and (stainless steel) at low to high cutting speeds and under average cutting conditions.

Execution
Solid carbide cutting insert with internal cooling

Advantage
  • Very hard cemented carbide grade ensures low wear
  • Stable geometry for the cutting insert
  • Extremely sharp blades ensure process reliability for cutting


Brand: ATORN
ISO name: AG
Shank diameter (D): 6 mm
Length (L): 51 mm
Clearance length (L1): 22 mm
Programming size 2 (H): 1,4 mm
Recessing width (B): 1 mm
Programming size (F): 2,8 mm
Min. bore diameter (D min.): 6,1 mm
Machining direction: Right
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11948215

EAN no.: 4050293667264
