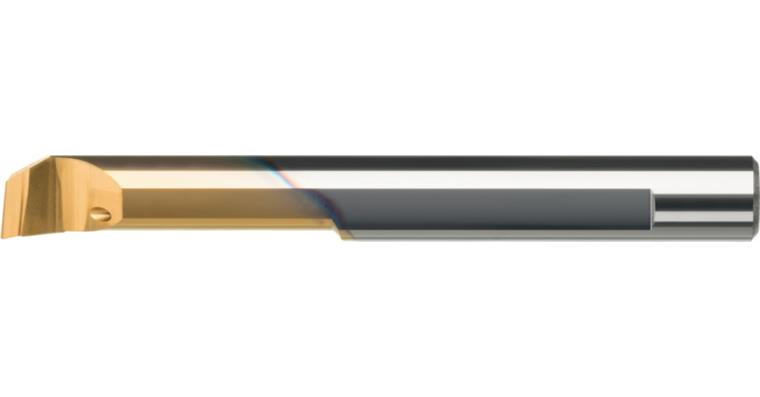

ATORN mini cutting insert ATL 5.0mm R0.1 L15 HC5640

ATORN mini cutting insert ATL 5.0mm R0.1 L15 HC5640

ATORN mini cutting insert ATL 5.0mm R0.1 L15 HC5640
Item no: 1018316 154

Online price:

Available in 4-6 working days.

Application
For longitudinal inside boring in steel, (stainless steel), cast iron and non-ferrous metals material groups at low cutting speeds or in unfavourable cutting conditions.

Execution
Solid carbide cutting insert with 96° attack angle with internal cooling

Advantage
  • Robust cemented carbide grade for a broad application range
  • Stable geometry optimised for longitudinal internal boring machining
  • Ideal for use with low-performance machines and unstable cutting conditions


Brand: ATORN
Shank diameter (D): 5 mm
ISO name: AT
Length (L): 51 mm
Clearance length (L1): 15 mm
Radius (R): 0,1 mm
Programming size (F): 2,1 mm
Min. bore diameter (D min.): 5,1 mm
Machining direction: Left
Carbide type: HC5640
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal

ATORN-No.: 11946507

EAN no.: 4050293370621

Product Datasheet
