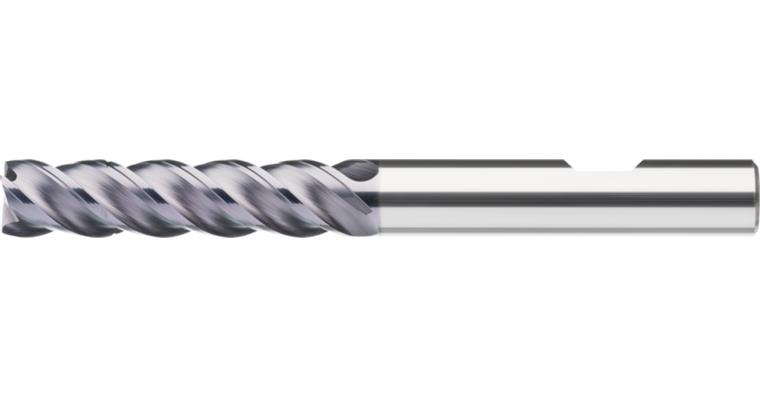

ATORN SC TVC end mill ULTRA, diameter 8.0 x 34 x 80 mm, teeth=4, HB shaft

ATORN SC TVC end mill ULTRA, diameter 8.0 x 34 x 80 mm, teeth=4, HB shaft

ATORN SC TVC end mill ULTRA, diameter 8.0 x 34 x 80 mm, teeth=4, HB shaft
Item no: 1016667 208

Online price:

Available in 6-8 working days.

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3-5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-coated
  • centre cutting and edge protection chamfer
  • special chip breakers for short chips
  • uneven twist angle


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 8 mm
Cutting edge length: 34 mm
Length: 80 mm
Edge protection chamfer length: 0,16 mm
Shank diameter: 8 mm
fz steel 1000: 0.09
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263743

EAN no.: 4050293417654

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC TVC end mill ULTRA, diameter 6.0 x 25 x 70 mm, teeth=4, HB shaft
    70,03 €

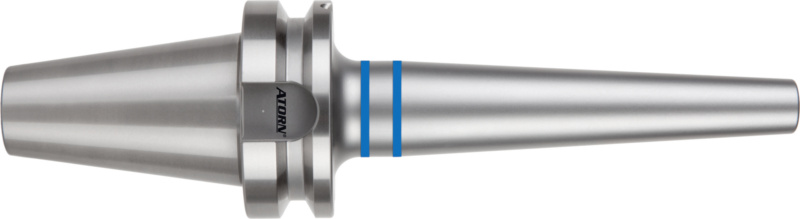

  • shrink-fit chuck BT40, slim, 3°, D5 A120 ISO 7388-2 coolant supply type J
  •
