ATORN SC TVC end mill ULTRA, diameter 6.0 x 25 x 70 mm, teeth=4, HB shaft

ATORN SC TVC end mill ULTRA, diameter 6.0 x 25 x 70 mm, teeth=4, HB shaft

ATORN SC TVC end mill ULTRA, diameter 6.0 x 25 x 70 mm, teeth=4, HB shaft
Item no: 1016667 206

Online price:

Available in 6-8 working days.

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3-5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-coated
  • centre cutting and edge protection chamfer
  • special chip breakers for short chips
  • uneven twist angle


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 6 mm
Cutting edge length: 25 mm
Length: 70 mm
Edge protection chamfer length: 0,12 mm
Shank diameter: 6 mm
fz steel 1000: 0.07
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263742

EAN no.: 4050293417647

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Soft Pro 100 office swivel chair, black cover, seat H 45-55 cm, seat W 45 cm
  •
    ATORN SC TVC end mill ULTRA, diameter 8.0 x 34 x 80 mm, teeth=4, HB shaft
  •
    Cabinet workbench W1500XD750XH840mm 3 drawers RAL7035/5012
  •

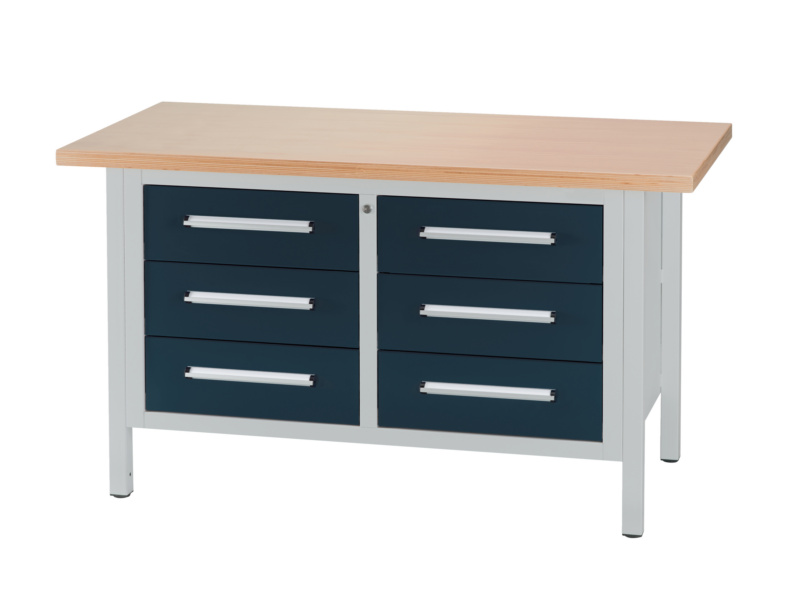

    Cabinet workbench W1500XD750XH840mm 6 drawers RAL7035/7016
  •
    1/4 inch hex imp. screwdr. bit CV special steel long AF 10 mm + spr. load magnet
  •
    ATORN wire end brush/miniature brush natural bristles goat hair 5x2.34
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E M5
  •
    Cabinet workbench W1500XD750XH840mm 6 drawers RAL7035/5012
  •
    1/4 inch hex imp. screwdr. bit CV special steel long AF 13 mm + spr. load magnet
  •
    shrink-fit chuck BT40, slim, 3°, D18 A160 ISO 7388-2 coolant supply type J
  •

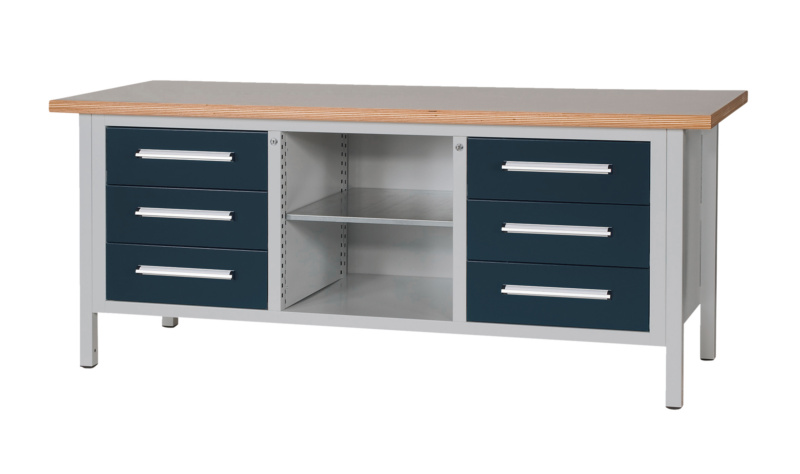

    Cabinet workbench W2000XD750XH840mm 6 drawers RAL7035/5012
  •

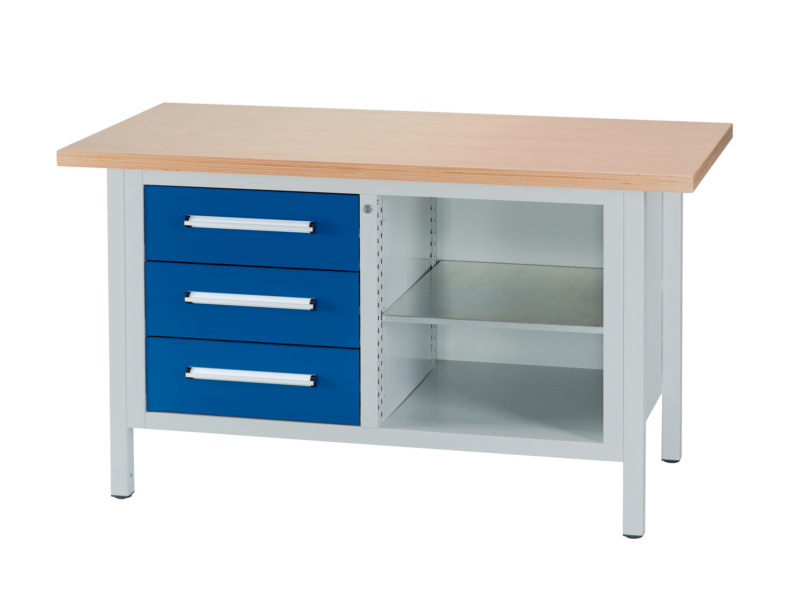

    Cabinet workbench W1500XD750XH840mm 3 drawers RAL7035/5010
