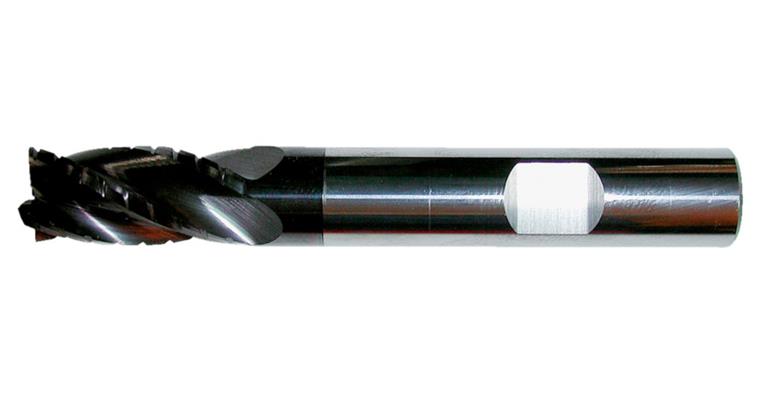

Roughing/finishing cutter NF TiAlN 30° normal HB shank T=4 dia. 5 mm

Roughing/finishing cutter NF TiAlN 30° normal HB shank T=4 dia. 5 mm

Roughing/finishing cutter NF TiAlN 30° normal HB shank T=4 dia. 5 mm
Item no: 1016565 101

Online price:

Available in 6-8 working days.

Application
For roughing and finishing with extreme feeds in steel.

Execution
  • Normal
  • With ground chip breakers
  • Solid carbide with TiAIN coating
  • Centre cutting
  • 30° spiral for high roughing performance

Advantage
Very smooth operation as the cutting pressure is reduced thanks to the special chip breakers


Brand: LIZZARD
Material to be processed: Steel | Stainless steel
Cutting edge diameter: 5 mm
Cutting edge length: 15 mm
Length: 57 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 30° (right)
Type: NF
Construction length: Normal
Cutting direction: Right-hand cutting
fz steel 1000: 0,022 mm
