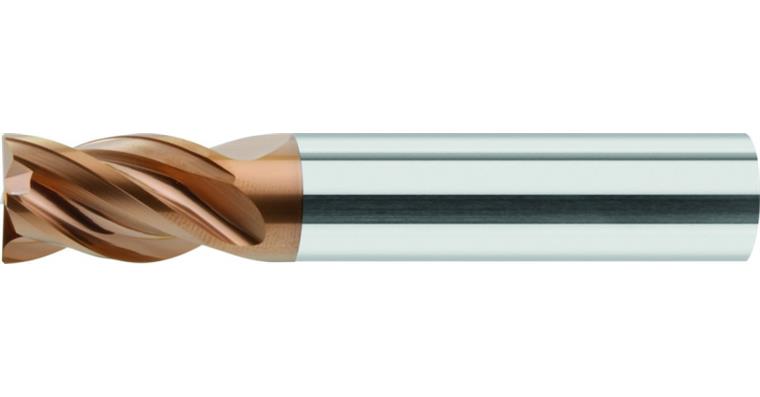

Solid carbide HPC end mill INOX Duocon-coated Z4 HA shaft dia. 12 mm

Solid carbide HPC end mill INOX Duocon-coated Z4 HA shaft dia. 12 mm

Solid carbide HPC end mill INOX Duocon-coated Z4 HA shaft dia. 12 mm
Item no: 1016525 112

Online price:

Available in 6-8 working days.

Application
High-performance tool especially for machining stainless steels. For roughing and finishing.

Execution
  • Specially edge-treated solid carbide HPC end mill with Duocon coating
  • Uneven twist, uneven pitch
  • With the latest micro-geometry for INOX machining

Advantage
  • High machining volumes possible
  • Additional special feature of the HHW HPC Premium cutter is the face specially optimised for ramping

Notes
Make sure that the tool and workpiece are securely clamped!

Brand: LIZZARD
Material to be processed: Stainless steel
Cutting edge diameter: 12 mm
Cutting edge length: 16 mm
Length: 73 mm
Shank diameter: 12 mm
Edge protection chamfer length: 0,25 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: HPC
Construction length: Short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
