ATORN thread milling cutter w/ clearance SC M TH/BH 2xD 12.0 mm 1 mm HA

ATORN thread milling cutter w/ clearance SC M TH/BH 2xD 12.0 mm 1 mm HA

ATORN thread milling cutter w/ clearance SC M TH/BH 2xD 12.0 mm 1 mm HA
Item no: 1003141 659

Online price:

Available in 8-10 working days.

Application
For manufacturing right-handed and left-handed metric threads in through and blind holes on CNC and conventional machines in the steel, stainless steel, NF metal, cast and special alloy material groups up to a strength of 1500 N/mm² in single part and series production.

Execution
With collar recess.

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • Deep thread depth achievable due to collar recess between thread part and shank.


Brand: ATORN
Tool holding device: HA parallel shank
Material to be processed: Universal use
Cutting material: SC
Surface: Uncoated
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply: Internal

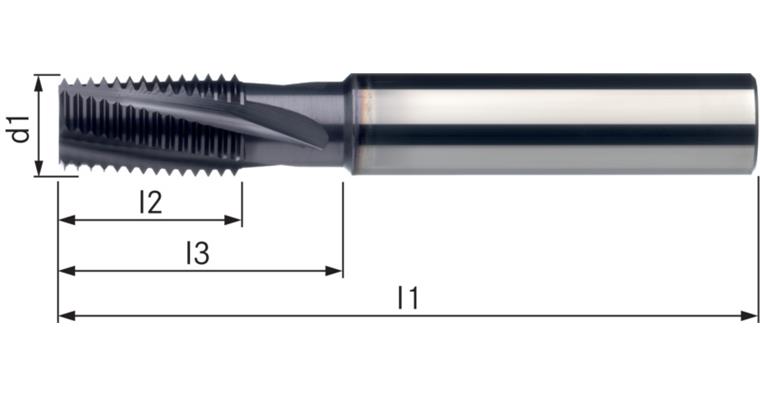

Cutting edge diameter (d1): 12 mm
Pitch: 1 mm
Suitable from thread size: M16
Length (l1): 80 mm
Cutting edge length (l2): 20 mm
Effective length of thread milling (l3): 31 mm
Shank diameter: 12 mm
Number of cutting edges: 4 PCS
f steel 1000: 0,06 mm/r

ATORN-No.: 11190305

EAN no.: 4050293271805

Product Datasheet Datasheet cutting values
