ATORN screw tap HSSE V3 vaporised C 40° thread 1/4 2.5xD CNC UNI

ATORN screw tap HSSE V3 vaporised C 40° thread 1/4 2.5xD CNC UNI

ATORN screw tap HSSE V3 vaporised C 40° thread 1/4 2.5xD CNC UNI
Item no: 1014608 102

Online price:

Available for immediate delivery

Application
For producing pipe threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Pipe thread
Thread dimension: G 1/4 inch - 19
Thread type x nominal diameter in inches: G 1/4 in
Number of thread starts per inch: 19
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE V3
Surface: Vaporised
Twist angle: 40° (right)
DIN: 5156
Shank diameter: 11 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 11,8 mm
Type: UNI MAX 40 Control
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280199

EAN no.: 4050293426335

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN MT HSSE shape B through hole 6G M6
  •
    Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E M12
  •
    Blind hole screw tap SGSP spiral-fluted 45° HSS-PM-SG 3xD DIN 376 shape C 6H M16
  •
    ATORN machine tap MF20 x 1.5 HSSE vaporised for through hole
  •

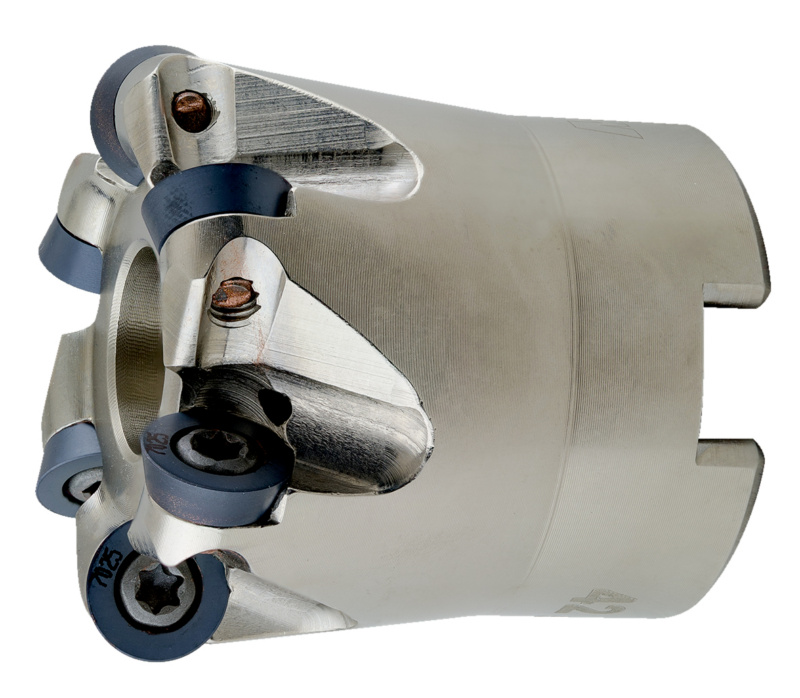

    Copy mlg ctr w drill hole ctg edge dia. 42 mm overall lgth 40 mm for RDHX 1003
  •
