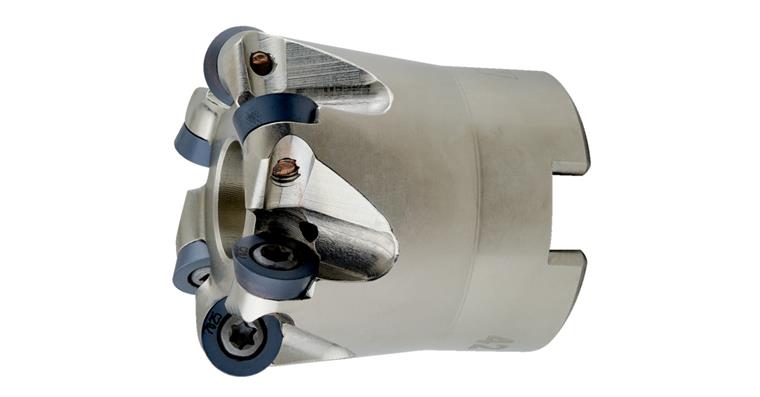

Copy mlg ctr w drill hole ctg edge dia. 42 mm overall lgth 40 mm for RDHX 1003

Copy mlg ctr w drill hole ctg edge dia. 42 mm overall lgth 40 mm for RDHX 1003

Copy mlg ctr w drill hole ctg edge dia. 42 mm overall lgth 40 mm for RDHX 1003
Item no: 1017614 120

Online price:

Available in 6-8 working days.

Application
For face and copy milling with high rotation speeds and feed rates. For toolmaking and mould making.

Execution
  • Nickel-plated milling cutter body in hardened special steel
  • With internal cooling
  • Robust design for smooth running

Advantage
High concentricity and axial runout precision


Brand: HHW
Max. cutting edge diameter (DCX): 42 mm
Bore diameter (DCON MS): 16 mm
Length (LF): 40 mm
Number of cutting edges: 6 PCS
Suitable for indexable inserts: RD.. 1003..
Coolant supply: Internal
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Location bore

EAN no.: 4024496043521

Product Datasheet
