Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 1 inch

Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 1 inch

Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 1 inch
Item no: 1014582 220

Online price:

Available in 6-8 working days.

Application
- UNF thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • DIN 2184-1
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter in inches: UNF 1 in
Max. thread depth: 2.5xD
Thread dimension: 1 inch - 12UNF
Number of thread starts per inch: 12
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 125 mm
Cutting edge length: 25 mm
Core hole diameter: 23,25 mm
Shank diameter: 18 mm
Shank square: 14,5 mm
Thread type: UNF
Twist angle: 40° (right)
Coolant supply: External
Nominal diameter in inches: 1 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE V3 vaporised C 45° M18 2.5 ISO2 2.5xD CNC UNI
  •
    Blind hole screw tap M 2Enorm-VA DIN 376 39° shape C 2.5xD HSS-E VA steels M12
  •
    Blind hole screw tap M 2Enorm-VA DIN 376 39° type C 2.5xD HSS-E VA steels M24
  •
    ATORN SC TVC end mill ULTRA M 6x32x72 mm T4 HB shank
    84,62 €
  • ATORN SC TVC end mill ULTRA M 8x42x83 mm T4 HB shank
    122,51 €
  • ATORN HPC POWER SC groove end mill, UNI, 7.75 x 9 x 22 x 58 mm HA, type N short
    --
  • ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HA, type N short
    40,04 €
  • ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HB, type N short
    --
  • ATORN HPC POWER SC groove end mill, UNI, 8.0 x 19 x 27 x 63 mm HB, type N, long
  •
    ATORN solid carbide end mill T3 HB, 20.0 x 40 x 54 x 104 mm, plain
  •

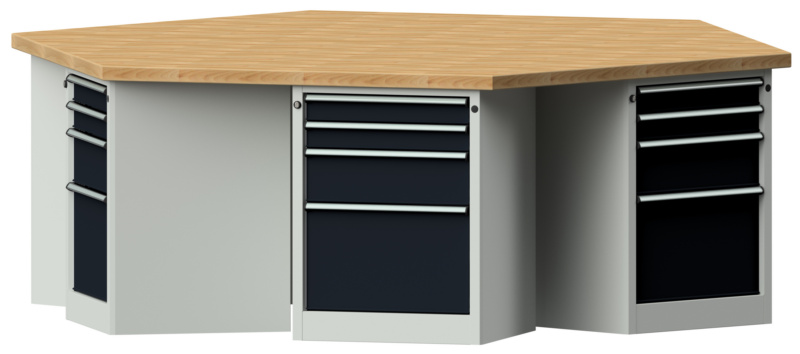

    Gruppenwerkbank 6-Eck 2340x2700x900mm Buche-Massivplatte 7035/7016
    7.833,70 €

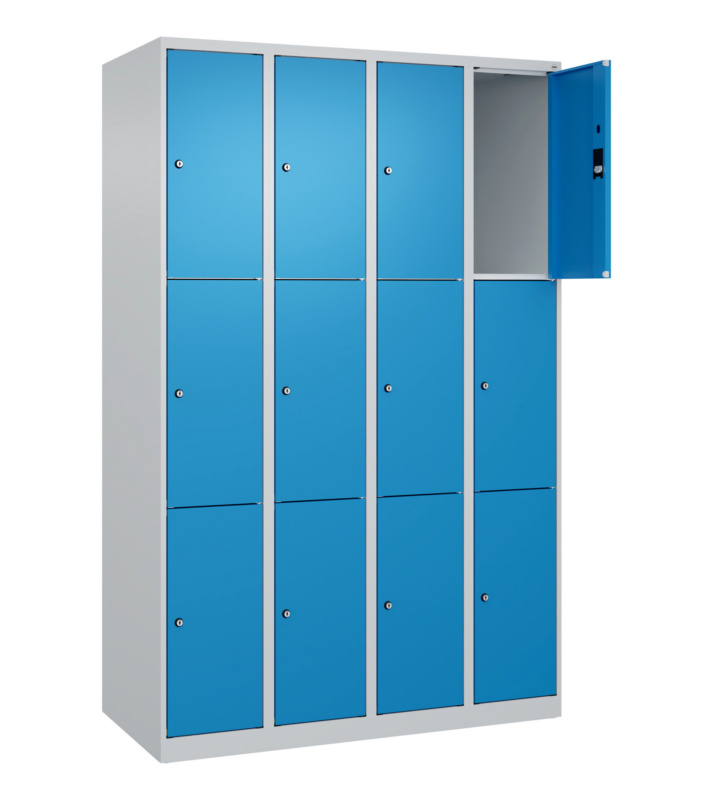

  • Schließfachschrank Classic PLUS, 12 Fächer, 1850x1200x500mm RAL 7035/5012
