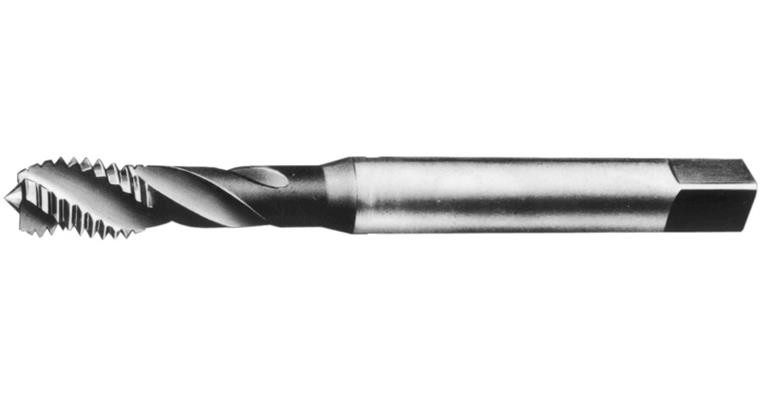

Blind hole screw tap M 2Enorm-VA DIN 376 39° shape C 2.5xD HSS-E VA steels M12

Blind hole screw tap M 2Enorm-VA DIN 376 39° shape C 2.5xD HSS-E VA steels M12

Blind hole screw tap M 2Enorm-VA DIN 376 39° shape C 2.5xD HSS-E VA steels M12
Item no: 1014440 111

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- VA steels up to 1,100 N/mm²

Execution
  • 1 Enorm VA
  • Tolerance field 6H
  • DIN 376
  • Right-hand spiral flute approx. 39°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E


Brand: EMUGE
Material to be processed: Stainless steel
Thread type x nominal diameter: M12
Max. thread depth: 2.5xD
Pitch: 1,75 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 110 mm
Cutting edge length: 18 mm
Core hole diameter: 10,20 mm
Shank diameter: 9 mm
Shank square: 7 mm
Thread type: Metric thread
Type: 2 Enorm VA
Twist angle: 39°
DIN: 376
Coolant supply: External
Nominal diameter: 12 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: C354

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

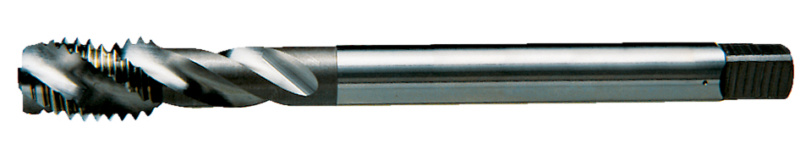

  • ATORN machine tap HSSE HL VA, 6HX, 0 degrees, form B, M12
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E M8
  •

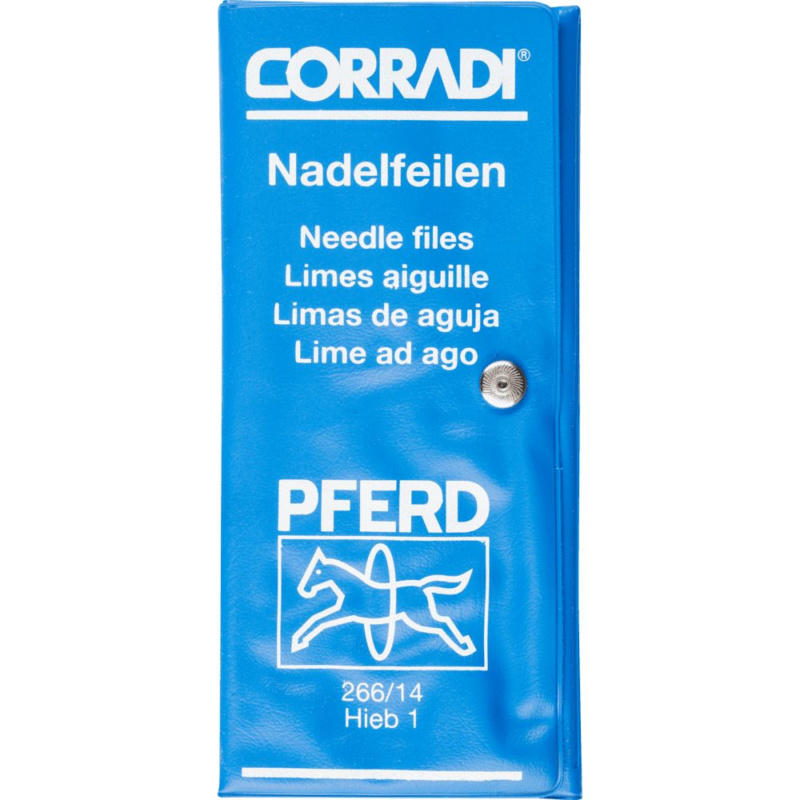

    Prec. needle files set, 12 pieces, medium grit, in case, L=140 mm, Swiss cut 1
  •
