ATORN screw tap HSSE V3 vaporised B 0° MF6 x 0.5 ISO2 3xD CNC UNI

ATORN screw tap HSSE V3 vaporised B 0° MF6 x 0.5 ISO2 3xD CNC UNI

ATORN screw tap HSSE V3 vaporised B 0° MF6 x 0.5 ISO2 3xD CNC UNI
Item no: 1014516 104

Online price:

Still in stock: 3

Application
For producing fine metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF6
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE V3
Surface: Vaporised
Pitch: 0,5 mm
Twist angle: 0°
DIN: 374
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5,5 mm
Type: UNI MAX 40 Control
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280159

EAN no.: 4050293425932

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE C 374 40° MF12 1 mm ISO2 S 2.5xD CNC P
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E-TiCN M6
  •
    Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M6
  •
    ATORN screw tap HSSE V3 C 40° MF22x1.5 ISO2 2.5xD CNC UNI
  •

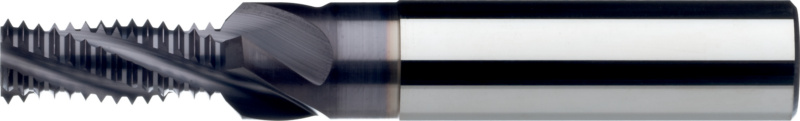

    ATORN multi-range thread milling cutt. 45° SC TH/BH 2xD 6.0 mm 1 mm 62 mm HA
  •
