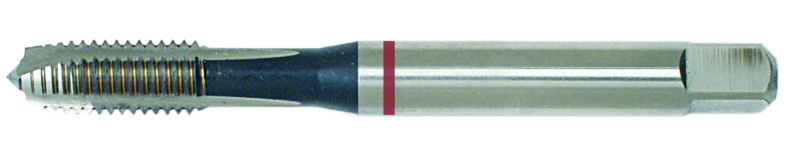

Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M6

Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M6

Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M6
Item no: 1014414 203

Online price:

Still in stock: 9

Application
For non-rusting materials up to 1,100 N/mm².

Execution
  • Metric thread
  • Through-hole thread
  • Right-cutting with spiral point
  • HSSE

Notes
UNI high-performance screw taps with optimal cutting geometry, long service life and process reliability!

Brand: NACHI
Material to be processed: Aluminium | Copper | Stainless steel | Steel
Thread type x nominal diameter: M6
Max. thread depth: 2xD
Pitch: 1 mm
Cutting material: HSSE
Surface: Vaporised
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 80 mm
Cutting edge length: 17 mm
Core hole diameter: 5,00 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric thread
Type: Hyper Z VA
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 6 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: L6872 M6

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE C 374 40° MF12 1 mm ISO2 S 2.5xD CNC P
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-PM for Ti/Ni M4
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-PM for Ti/Ni M5
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E-PM for Ti/Ni M6
  •
    Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M10
  •
    ATORN screw tap HSSE V3 C 40° MF22x1.5 ISO2 2.5xD CNC UNI
  •
    Clamping jaw, extra-wide for Hydro-M vice type SM, NC, UNC with BB 125 mm
  •

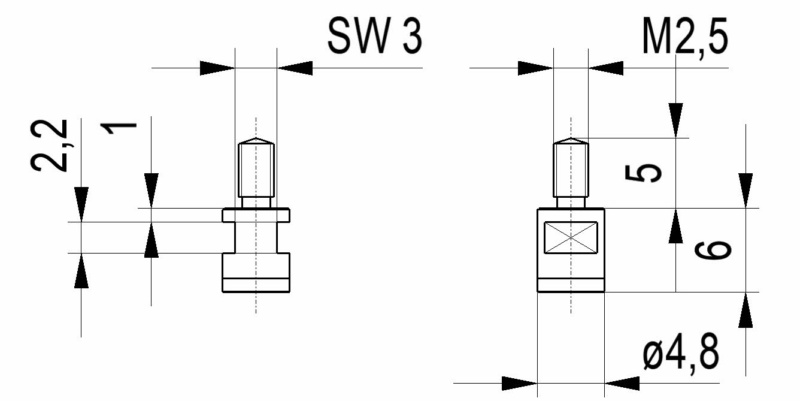

    Flat probe no. 22 for dial gauges and precision pointers A thr. M2.5 4.8 mm dia.
  •
