ATORN MT HSSE shape C blind hole 6H M39

ATORN MT HSSE shape C blind hole 6H M39

ATORN MT HSSE shape C blind hole 6H M39
Item no: 1014455 139

Online price:

Still in stock: 1

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm²

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M39
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 200 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 4 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 32 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 35,0 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 24 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11291122

EAN no.: 4066107000325

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

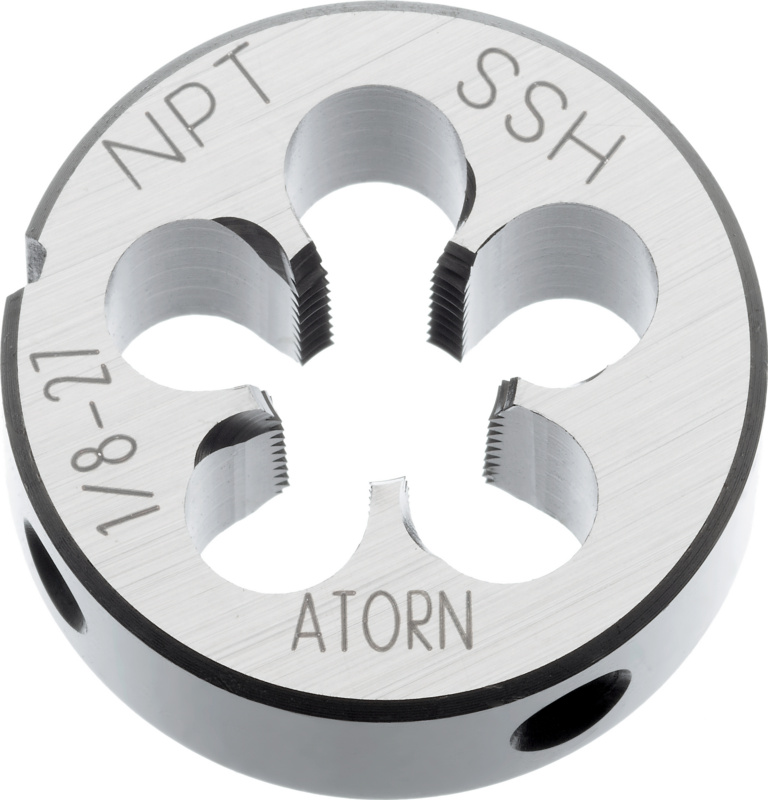

  • ATORN die HSS EN 24230 NPT 1/8 in 27 speed outer diameter 30 mm
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M8
  •
    ATORN MT HSSE shape E blind hole 6H M12
  •
    ATORN MT HSSE shape E blind hole 6H M30
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E to 1,400 N/mm² M6
  •
    ATORN MT HSSE shape C blind hole 6H M33
  •
    ATORN MT HSSE shape C blind hole 6H M36
  •
    ATORN MT HSSE shape C blind hole 6H M48
  •
    ATORN MT HSSE shape C blind hole 6H M52
  •
    ATORN MT HSSE shape C blind hole 6H BM 12
  •
    ATORN milling cutter holder BT50 (ISO 7388-2) dia. 10 mm A=63 mm
  •

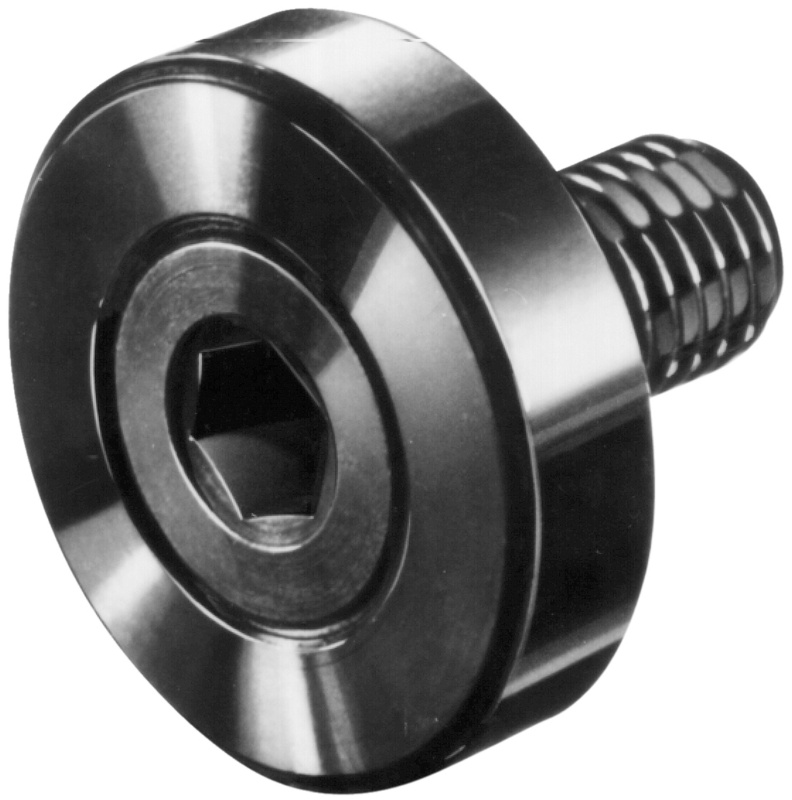

    Milling cutter retaining screw M20 for milling arbor with pin diameter 40 mm
