Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M8

Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M8

Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M8
Item no: 1014318 108

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point tap
  • Reduction in buildup of material deposits through vaporisation
  • Tolerance range 6H
  • DIN 371/376
  • HSSE, vaporised

Notes
Very well suited for VA machining.

Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M8
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 90 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,25 mm
Twist angle: 0°
DIN: 371
Shank diameter: 8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 6,80 mm
Shank square: 6,2 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290121

EAN no.: 4050293132007

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • EINLIPPEN-TIEFLOCHBOHRER E80 40XD MIT TICN VHM-KOPF GERADE HA Ø 4,5
  •
    EINLIPPEN-TIEFLOCHBOHRER E80 40XD MIT TICN VHM-KOPF GERADE HA Ø 9,0
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M8
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E to 1,400 N/mm² M6
  •
    ATORN screw tap HSSE shape C 40° M8 ISO2 2.5xD CNC UNI for blind hole
  •
    Single-cut tap HSS M10 for cat. no. 14800+14810
  •
    Milling cutter retaining screw M20 for milling arbor with pin diameter 40 mm
    22,04 €
  • TC bur, cylinder (ZYA-S), shank dia. 6 mm, serration ALU, head dia.xlength 10x20
  •
    TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 6x30mm L=65mm
    46,64 €
  • 1/2 inch hex socket screwdriver bit long CV steel ball head AF 12 mm
  •
    1/4 inch hex imp. screwdr. bit CV special steel long AF 13 mm + spr. load magnet
  •

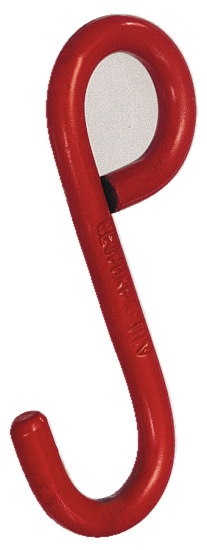

    S-hook closed on one side, red painted, max. 200 kg load capacity
