ATORN screw tap HSSE V3 vaporised C 40° M6 1.0 ISO2 3xD CNC UNI

ATORN screw tap HSSE V3 vaporised C 40° M6 1.0 ISO2 3xD CNC UNI

ATORN screw tap HSSE V3 vaporised C 40° M6 1.0 ISO2 3xD CNC UNI
Item no: 1014433 104

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast material groups up to a strength of 1200 N/mm²

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE V3
Surface: Vaporised
Pitch: 1 mm
Twist angle: 45° (right)
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5 mm
Type: UNI MAX 45 Control
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280098

EAN no.: 4050293425321

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN twist drill VA HSSE, DIN 338, 5.0 mm x 86 mm x 52 mm, 130°
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 5 mm
  •
    ATORN screw tap HSSE shape C 40° M6 ISO2 2.5xD CNC UNI for blind hole
  •
    Fibre disc ceramic stearate for ALU XF733, dia. 125 mm, grain 36
    2,73 €
  • ATORN cutting disc for stainless steel, 125 x 1 x 22 mm, INOX disc
    1,47 €
  • Nylon knitted glove Royaltec Tech 2107 PU = 12 pairs size 10
    32,40 €
  • Nylon knitted glove Oil Grip PU = 12 pairs size 9
    33,80 €
  • ATORN A-Mech 2 assembly glove, size 7
    2,60 €
  • ATORN A-Mech 2 assembly glove, size 10
    2,60 €
  • Cut protection glove Royaltec Cut 6601 PU=1 pair size 9
    7,80 €
  • Disposable glove Dermatril® 740 PU=100 pieces size 9
    26,40 €

[Text nicht gefunden]

  • ATORN twist drill U4 HSSE, DIN 338, 6.4 mm x 101 mm x 63 mm, 118°
    7,13 €
  • ATORN twist drill U4 HSSE, DIN 338, 7.7 mm x 117 mm x 75 mm, 118°
  •
    ATORN twist drill U4 HSSE, DIN 338, 13.0 mm x 151 mm x 101 mm, 118°
  •
    Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf., uneven pitch dia. 10.4 m
    39,77 €
  • Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf., uneven pitch dia. 16.5 mm
    53,96 €
  • Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf., uneven pitch dia. 20.5 mm
    66,09 €
  • Prec. cntrsink dr. 90° HSS-E Alunit w/ 3 clamp surf., uneven pitch dia. 25.0 mm
    91,68 €
  • ATORN screw tap HSSE V3 DIN 371 vaporised B 0° M3 0.5 ISO2 3xD CNC UNI
    16,71 €
  • Screwdriver set mixed screw chisel hexagon shoulder Kraftform handle 6 pieces PH
    53,85 €

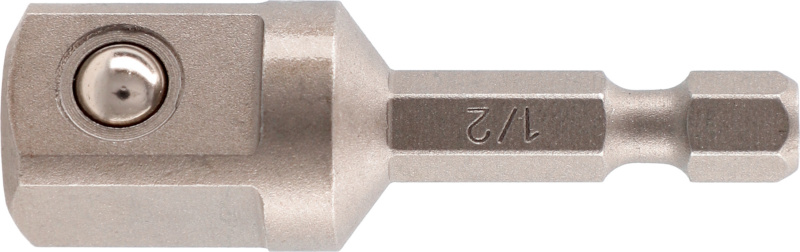

  • ATORN long adapter, 1/4 inch hexagon to 1/2 inch square, 50 mm
