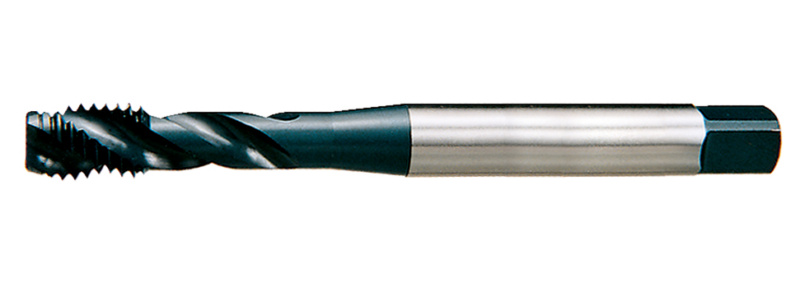

Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E-TiCN for VA steels M10

Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E-TiCN for VA steels M10

Blind hole screw tap M DIN 376 35° shape C 2xD HSS-E-TiCN for VA steels M10
Item no: 1014430 206

Online price:

Available for immediate delivery

Application
Metric thread
Blind holes
Max. drilling depth 2xD
VA steels up to 1,000 N/mm2

Execution
TiCN coating for a long service life

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M10
Max. thread depth: 2xD
Pitch: 1,5 mm
Cutting material: HSSE
Surface: TiCN
Hole type: Blind hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 100 mm
Cutting edge length: 22 mm
Core hole diameter: 8,50 mm
Shank diameter: 7 mm
Shank square: 5,5 mm
Thread type: Metric thread
Twist angle: 35°
DIN: 376
Coolant supply: External
Nominal diameter: 10 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
