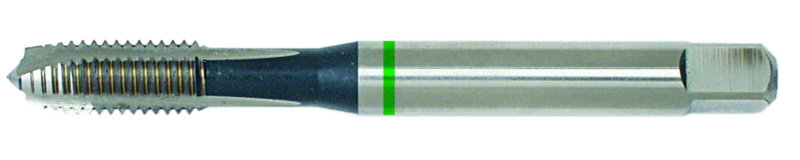

Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M6

Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M6

Through hole and blind hole screw tap M DIN 371 shape A 2xD SC-TiAlN+C ICS M6
Item no: 1014355 106

Online price:

Still in stock: 8

Application
- Metric thread
- Through and blind holes
- Max. drilling depth 3xD
- Up to HRC 60

Execution
  • Tolerance range 6H
  • DIN type C (2-3 chamfer threads)
  • DIN 371/376
  • SC TiAlN+C

Notes
For very hard steels, we recommend drilling the core hole larger by 0.1 to 0.3 mm in deviation from the DIN standard.

Brand: ATORN
Material to be processed: Hard material | Hardened steel
Thread type: Metric thread
Thread dimension: M6
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance/blind hole ≤ 2xD
Lead angle shape: C
Length: 80 mm
Cutting material: SC
Surface: TiAlN plus
Pitch: 1 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5,00 mm
Coolant supply: Internal axial
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 1
Cutting speed (hard 65) suitability (ISO H 65HRC): 1

ATORN-No.: 11290228

EAN no.: 4050293132700

Product Datasheet Datasheet cutting values
