ATORN screw tap HSSE vap. B 371 0° M3 0.5 mm ISO2 D 3xD CNC UNI

ATORN screw tap HSSE vap. B 371 0° M3 0.5 mm ISO2 D 3xD CNC UNI

ATORN screw tap HSSE vap. B 371 0° M3 0.5 mm ISO2 D 3xD CNC UNI
Item no: 1014346 103

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm².

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 56 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290821

EAN no.: 4050293380088

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN SC mini radius cutter TiAlSiN 0.6x0.48x50 mm clearance 0.57x2 mm
  •
    ATORN SC radius cutter TiAlSiN 2x2.5x65 mm clearance 1.95x4.5 mm
  •
    ATORN SC mini radius cutter, diameter 0.5 x 1.2 x 40 mm T=2 RT65
  •
    Fibre disc ceramic stearate for ALU XF733, dia. 125 mm, grain 36
    2,73 €
  • ATORN cutting disc for stainless steel, 125 x 1 x 22 mm, INOX disc
    1,47 €
  • Nylon knitted glove Royaltec Tech 2107 PU = 12 pairs size 10
    32,40 €
  • Nylon knitted glove Oil Grip PU = 12 pairs size 9
    33,80 €
  • ATORN A-Mech 2 assembly glove, size 7
    2,60 €
  • ATORN A-Mech 2 assembly glove, size 10
    2,60 €
  • Cut protection glove Royaltec Cut 6601 PU=1 pair size 9
    7,80 €
  • Disposable glove Dermatril® 740 PU=100 pieces size 9
    26,40 €

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 2.5 mm x 57 mm x 30 mm, 118°
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 3.2 mm x 65 mm x 36 mm, 118°
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 3.4 mm x 70 mm x 39 mm, 118°
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 4.5 mm x 80 mm x 47 mm, 118°
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 6.0 mm x 93 mm x 57 mm, 118°
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 6.5 mm x 101 mm x 63 mm, 118°
  •
    Stainless precision pocket vernier callipers 0-150 mm w. locking screw

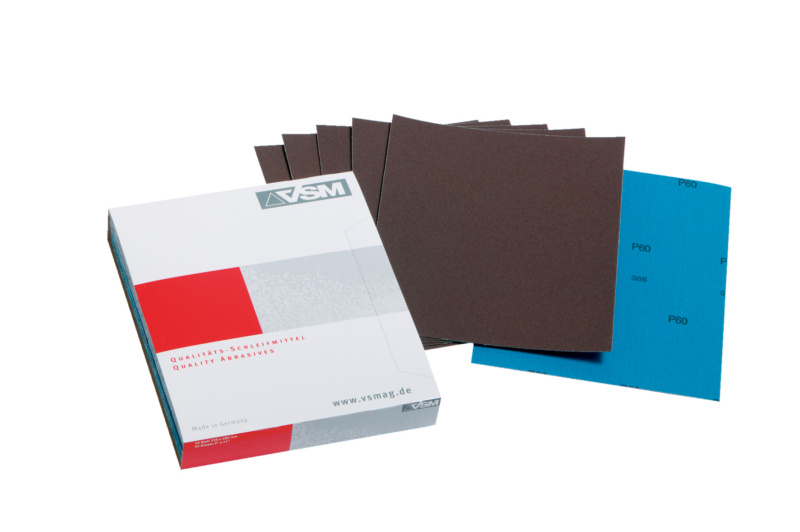

  • Corundum abrasive cloth blue grain 180 230x280 mm
